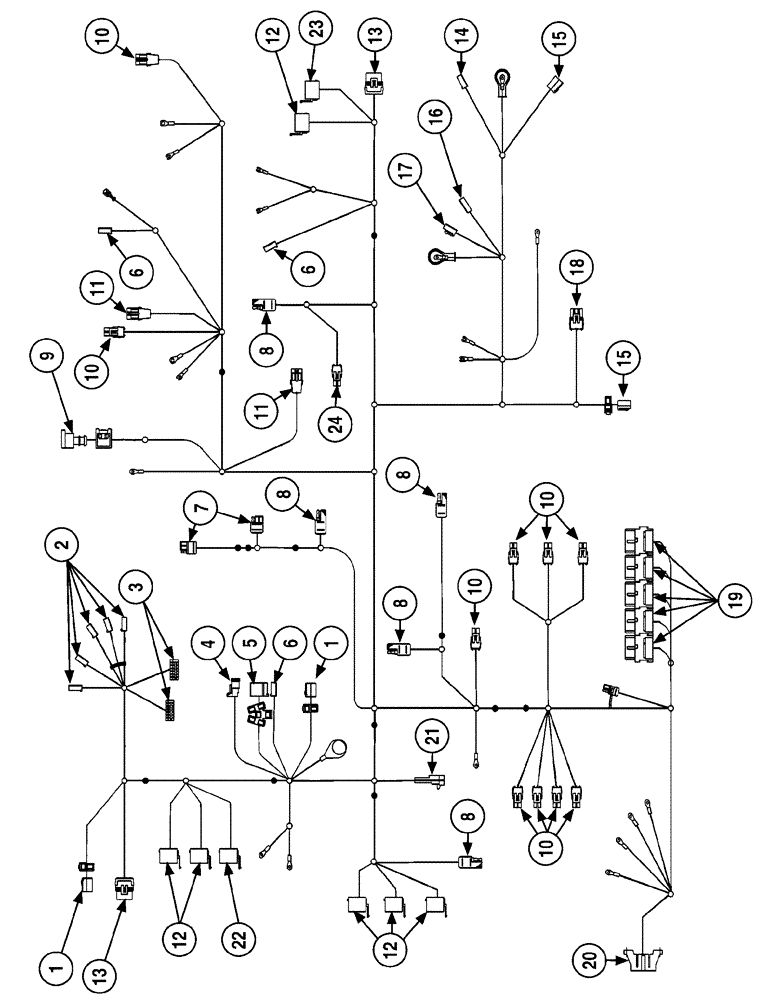

Запчасти Case 6010 (04-03) - HARNESS, MAIN - CONNECTORS (55) - ELECTRICAL SYSTEMS

341456A1

HARNESS

Main, For Components, See figure 4-02, Includes: 1 - 24

1шт.

1

877291R1

ELEC CONNECTOR,Female

Auxiliary Power

2шт.

2

739072C1

CONNECTOR, ELEC

CONNECTOR , Hourmeter, Fuel Gauge

5шт.

3

NSS

NOT SOLD SEPARAT

Connector, Engine Cluster, Hydraulic Cluster

2шт.

4

225311C1

CONNECTOR, ELEC

CONNECTOR , Strike Alert

1шт.

5

225353C1

WEDGE,Lock, Black

Type W6P, Ignition Switch

1шт.

6

739072C1

CONNECTOR, ELEC

CONNECTOR , Ground, Hydraulic Temperature Switch, Charge Pressure Switch

3шт.

7

NSS

NOT SOLD SEPARAT

Connector, Proximity Switch, Loader Out, Proximity Switch, Drill Head

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Boom Lamp, Beacon Lamp, Front Work Lamp (2), Work Lamp

5шт.

9

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Filter Restriction Indicator

1шт.

10

245482C1

ELEC CONNECTOR,2 Pin

Thrust/Pullback Bypass Solenoid, Water Valve, Unloader Solenoid, Track Drive Solenoid, Power Wrench Solenoid, Loader Arm Up, Loader Arm Down, Loader Arm In, Loader Arm Out

10шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

Thrust/Pullback Neutral Switch, Rotation Neutral Switch

2шт.

12

365114A1

ELEC CONNECTOR,Female, 8 Pin

Rear Work Lamp Switch, Pipe Loader Motor, Switch, Pipe, Loader Cylinder Switch, Drill Fluid On/Off Switch, Work Lamp Switch, Beacon Lamp Switch

6шт.

13

256346A1

CONNECTOR, ELEC

CONNECTOR , E-Stop (Emergency Stop) Front, E-Stop (Emergency Stop) Rear

2шт.

14

NSS

NOT SOLD SEPARAT

Connector, Coolant Temperature

1шт.

15

365121A1

ELEC CONNECTOR,2 Pin

Alternator, Fuel Pump

2шт.

16

365120A1

ELEC CONNECTOR,1 Pin

Motor

1шт.

17

365119A1

ELEC CONNECTOR,1 Pin

Starter Solenoid

1шт.

18

245484C1

ELEC CONNECTOR,3 Pin

Fuel, Shut-off

1шт.

19

245731C1

CONNECTOR, ELEC

CONNECTOR , Loader Interlock Relay, Thrust/Pullback Bypass Relay, Timer Control Relay, Seat Switch Relay, Engine Shutdown Relay

5шт.

20

245435C1

FUSE HOLDER

Fuse Block

1шт.

21

253294A1

CONNECTOR, ELEC

CONNECTOR , Seat Switch

1шт.

22

365114A1

ELEC CONNECTOR,Female, 8 Pin

Horn Switch, Front

1шт.

23

365114A1

ELEC CONNECTOR,Female, 8 Pin

Horn Switch, Rear

1шт.

24

245482C1

ELEC CONNECTOR,2 Pin

Horn

1шт.
