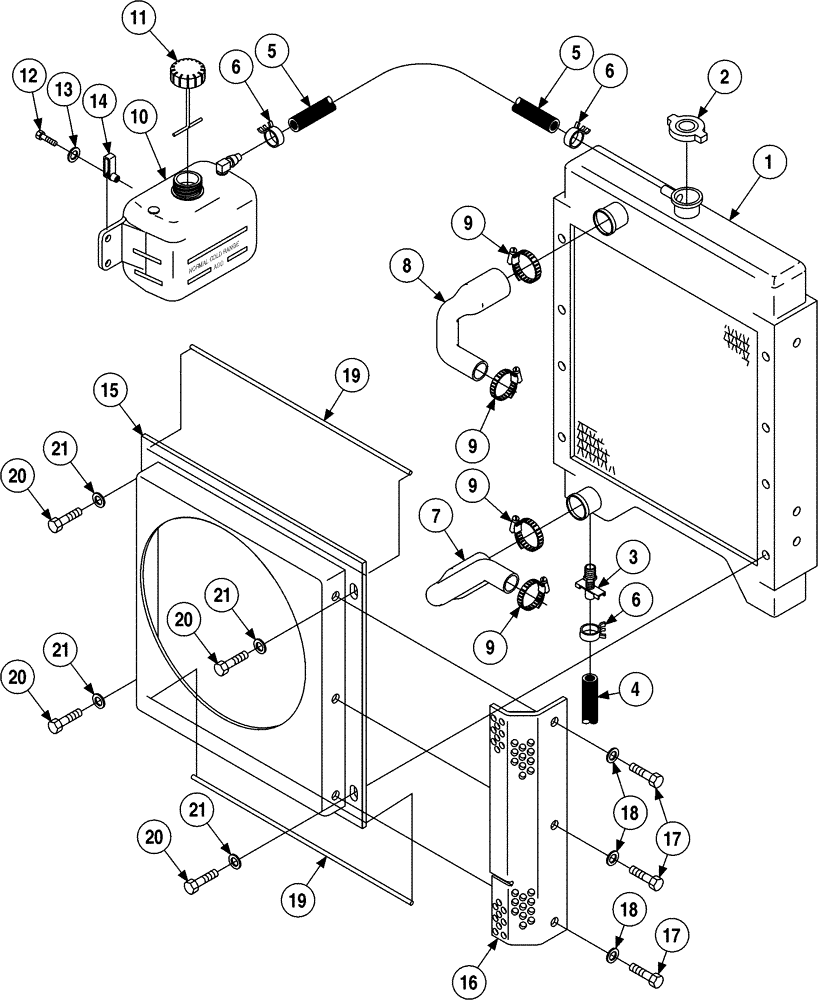

Запчасти Case 6010 (02-02) - RADIATOR - MOUNTING (10) - ENGINE

1

368294A1

RADIATOR

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

217-92

COCK

1/4

1шт.

4

114514A1

HOSE,9.65 mm ID x 600.00 mm

1шт.

5

H433707

HOSE

1575 mm (62 in)

1шт.

6

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

7

369367A1

HOSE,32.00 mm ID, 43.00 mm ID x 176.00 mm, SAE J20

Lower

1шт.

8

369368A1

HOSE,32.00 mm ID, 44.00 mm ID x 157.00 mm, SAE J20

Upper

1шт.

9

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

10

138189A1

RESERVOIR

Coolant Recovery

1шт.

11

A184079

CAP

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

14

H346650

NUT

2шт.

369939A1

SHROUD

Not Serviced As An Assembly, Order Components, Consists of: 15 - 18

1шт.

15

369475A2

SHROUD

1шт.

16

369938A2

GUARD

1шт.

17

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

18

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

19

376122A1

SEAL

2шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
