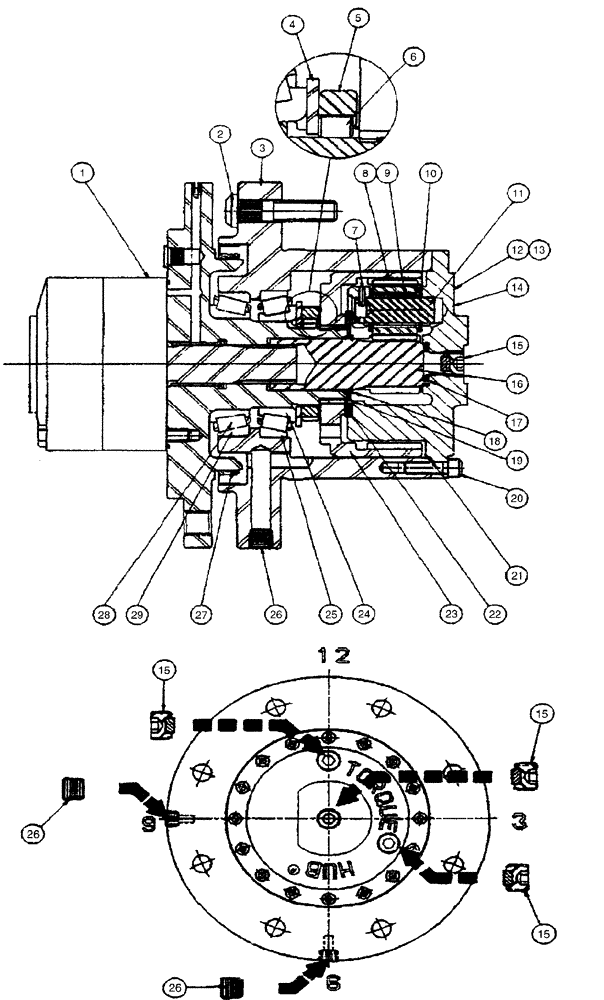

Запчасти Case 6010 (05-06) - MOTOR, TRACK DRIVE - PLANETARY HUB, FAIRFIELD DRIVE MOTOR (48) - TRACKS & TRACK SUSPENSION

TX202604

MOTOR, HYDRAULIC

Track Drive, Complete, Consists of: 1 - 29

1шт.

1

401230A1

MOTOR, HYDRAULIC

Component Parts Not Available at Time of Printing

1шт.

2

401236A1

STUD

9/16 NF, Special

8шт.

3

401232A1

HOUSING

1шт.

4

401234A1

WASHER

special

1шт.

5

401235A1

SPECIAL NUT

1шт.

6

401233A1

PIN

lock, Special

1шт.

7

38-2808

1/8 x 1/2

3шт.

8

401226A1

GEAR

planetary

3шт.

9

401219A1

BEARING, NEEDLE

57шт.

10

401222A1

THRUST WASHER

12шт.

11

401221A1

SHAFT

Planetary

3шт.

12

NSS

NOT SOLD SEPARAT

Plate, Serial Number

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, Drive

2шт.

14

401225A1

CARRIER

1шт.

15

221-673

3/8 PT, Magnetic

3шт.

16

401220A1

GEAR

sun

1шт.

17

401224A1

THRUST WASHER

1шт.

18

100-11131

SNAP RING,#131, Ext

1шт.

19

401223A1

THRUST WASHER

1шт.

20

401228A1

BOLT

5/16 NC, socket

16шт.

21

401229A1

O-RING,4.739" ID x 0.07" Width

o-ring

1шт.

22

401218A1

THRUST WASHER

1шт.

23

401231A1

GEAR

Internal

1шт.

24

158359C91

ROLLER BEARING,57.15mm ID x 21mm W

1шт.

25

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

26

221-671

DRAIN PLUG,Hex Soc, 1/4" NPT

Magnetic

2шт.

27

401227A1

SEAL

1шт.

28

3147254R91

RING

cone

1шт.

29

3147255R1

RING

cup

1шт.
