(05-04) - MOTOR, TRACK DRIVE - HYDRAULIC MOTOR, NACHI DRIVE MOTOR

Запчасти Case 6010 (05-04) - MOTOR, TRACK DRIVE - HYDRAULIC MOTOR, NACHI DRIVE MOTOR (48) - TRACKS & TRACK SUSPENSION

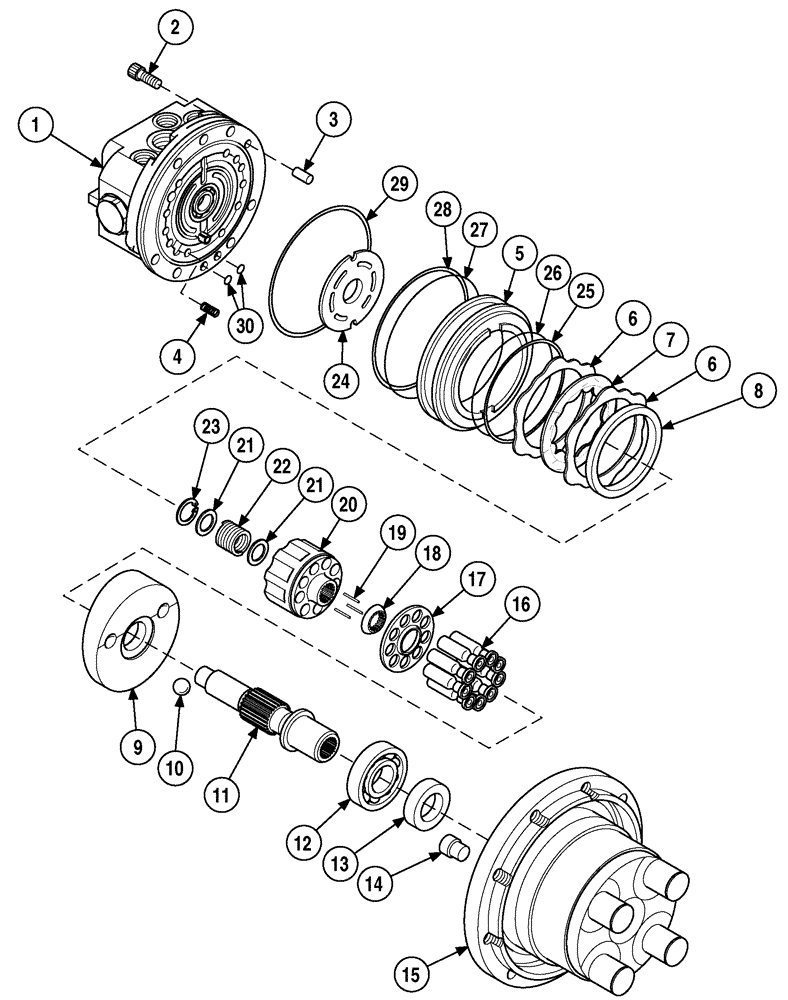

Схема запчастей Case 6010 - (05-04) - MOTOR, TRACK DRIVE - HYDRAULIC MOTOR, NACHI DRIVE MOTOR (48) - TRACKS & TRACK SUSPENSION
7
23
9
17
6
25
12
19
3
21
21
27
28
24
20
29
13
15
11
22
1
2
14
6
16
8
30
5
4
26
10
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

352423A1

MOTOR, HYDRAULIC

Track Drive, Complete, Includes: 389124A1, For Additional Parts, See figure 5-03

1шт.

389124A1

MOTOR, HYDRAULIC

Track Drive, Consists of: 1 - 30

1шт.

1

389128A1

KIT

manifold, See figure 5-05

1шт.

2

389154A1

SCREW

7шт.

3

389155A1

DOWEL

1шт.

4

389160A1

SPRING

8шт.

5

389158A1

BRAKE

1шт.

6

389157A1

PLATE

2шт.

7

389156A1

DISC

1шт.

8

389159A1

SPACER

1шт.

9

389151A1

PLATE

1шт.

10

389153A1

BALL

5/8

2шт.

11

389148A1

SHAFT

1шт.

12

389152A1

BEARING, BALL

1шт.

389146A1

KIT

Consists of: 13 - 15

1шт.

13

389147A1

OIL SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

Piston

1шт.

15

NSS

NOT SOLD SEPARAT

Body

1шт.

389149A1

KIT

Consists of: 16 - 24

1шт.

16

NSS

NOT SOLD SEPARAT

Piston Assy

9шт.

17

NSS

NOT SOLD SEPARAT

Holder

1шт.

18

NSS

NOT SOLD SEPARAT

Holder

1шт.

19

NSS

NOT SOLD SEPARAT

Pin

3шт.

20

NSS

NOT SOLD SEPARAT

Barrel

1шт.

21

NSS

NOT SOLD SEPARAT

Retainer

2шт.

22

NSS

NOT SOLD SEPARAT

Spring

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

24

NSS

NOT SOLD SEPARAT

Plate

1шт.

389150A1

KIT

Consists of: 25 - 30

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

27

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

28

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring

2шт.
