(05-03) - MOTOR, TRACK DRIVE - PLANETARY HUB, NACHI DRIVE MOTOR

Запчасти Case 6010 (05-03) - MOTOR, TRACK DRIVE - PLANETARY HUB, NACHI DRIVE MOTOR (48) - TRACKS & TRACK SUSPENSION

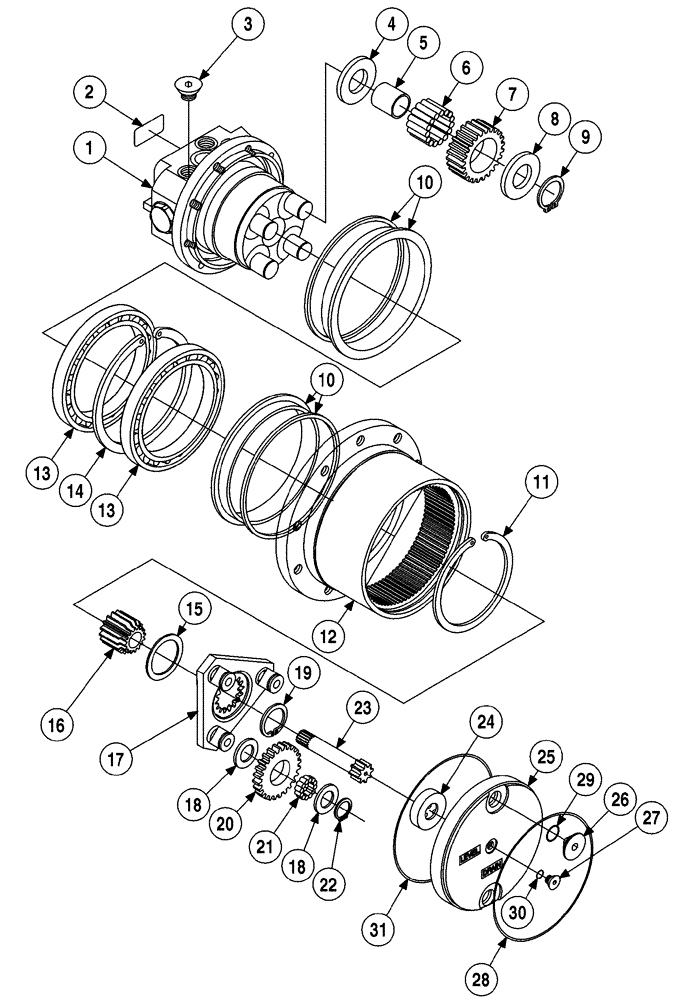

Схема запчастей Case 6010 - (05-03) - MOTOR, TRACK DRIVE - PLANETARY HUB, NACHI DRIVE MOTOR (48) - TRACKS & TRACK SUSPENSION
18
17
15
27
10
29
31
13
21
8
10
20
14
11
26
18
24
1
28
5
13
9
6
22
2
16
19
12
3
25
4
7
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

352423A1

MOTOR, HYDRAULIC

Track Drive, Complete, Consists of: 1 - 31

1шт.

1

389124A1

MOTOR, HYDRAULIC

See figure 5-04 - 5-05

1шт.

2

NSS

NOT SOLD SEPARAT

Plate

1шт.

3

389125A1

PLUG

2шт.

4

389126A1

THRUST WASHER

thrust

4шт.

5

389113A1

RING

4шт.

6

389118A1

NEEDLE BEARING

bearing

92шт.

7

389111A1

GEAR

4шт.

8

389127A1

THRUST WASHER

thrust

4шт.

9

389120A1

RING, SNAP

RING SNAP

4шт.

10

389117A1

SEAL

Includes: Seal and O-Ring

2шт.

11

389119A1

RING, SNAP

RING SNAP

1шт.

389100A1

KIT

Consists of: 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Body

1шт.

13

389102A1

BEARING, ROLLER

2шт.

14

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

15

389115A1

COLLAR

1шт.

389106A1

CARRIER

Consists of: 16 - 22

1шт.

16

NSS

NOT SOLD SEPARAT

Gear

1шт.

17

NSS

NOT SOLD SEPARAT

Gear

3шт.

18

NSS

NOT SOLD SEPARAT

Washer, Thrust

6шт.

19

389107A1

RING, SNAP

RING SNAP

1шт.

20

NSS

NOT SOLD SEPARAT

Gear

3шт.

21

NSS

NOT SOLD SEPARAT

Bearing, Needle

48шт.

22

389108A1

RING, SNAP

RING SNAP

3шт.

23

389112A1

GEAR

1шт.

24

389116A1

RING

1шт.

25

389104A1

COVER

1шт.

26

389122A1

PLUG

2шт.

27

389123A1

PLUG

1шт.

28

389114A1

RING, SNAP

RING SNAP

1шт.

389110A1

KIT

Consists of: 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

30

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

31

NSS

NOT SOLD SEPARAT

O-Ring

1шт.
