(08-38) - MOTOR, HYDRAULIC - PIPE LOADER

Запчасти Case 6010 (08-38) - MOTOR, HYDRAULIC - PIPE LOADER (35) - HYDRAULIC SYSTEMS

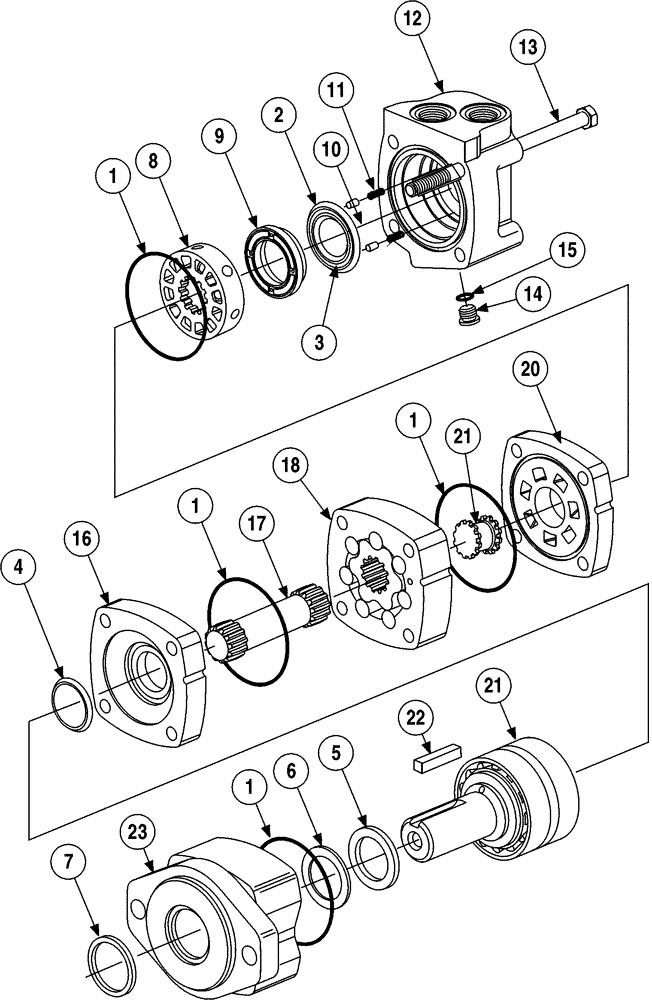

Схема запчастей Case 6010 - (08-38) - MOTOR, HYDRAULIC - PIPE LOADER (35) - HYDRAULIC SYSTEMS
10
21
13
7
1
21
4
11
5
6
12
20
1
1
15
16
8
17
9
3
1
14
23
18
2
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

338977A1

HYDRAULIC MOTOR

Pipe Loader, Consists of: 1 - 23

1шт.

S300417

SEAL KIT

Seal, Consists of: 1 - 7

1шт.

1

S114357

SEAL,Square, 1.7mm Thk x 75.9mm ID

4шт.

2

S300408

SEAL

SPARE PART , Outer Face

1шт.

3

S114371

SEAL

Inner Face

1шт.

4

S114491

SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk

1шт.

5

S300410

SEAL

SPARE PART

1шт.

6

N9432

SEAL

1шт.

7

S300401

SEAL

SPARE PART , Exclusion

1шт.

8

S300407

VALVE

1шт.

9

S300411

PLATE

Balancing

1шт.

10

S114372

PIN

2шт.

11

S114366

SPRING

2шт.

12

NSS

NOT SOLD SEPARAT

Housing, Valve

1шт.

13

365383A1

GEROTOR

4шт.

14

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

189092A1

LARGE PLATE

PLATE, LARGE

1шт.

17

365381A1

DRIVE

1шт.

18

365383A1

GEROTOR

1шт.

19

S114496

COUPLING

Valve

1шт.

20

189096A1

PLATE

1шт.

21

365380A1

SHAFT

Shaft and Bearing

1шт.

22

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Shaft

1шт.

23

NSS

NOT SOLD SEPARAT

Housing, Bearing

1шт.
