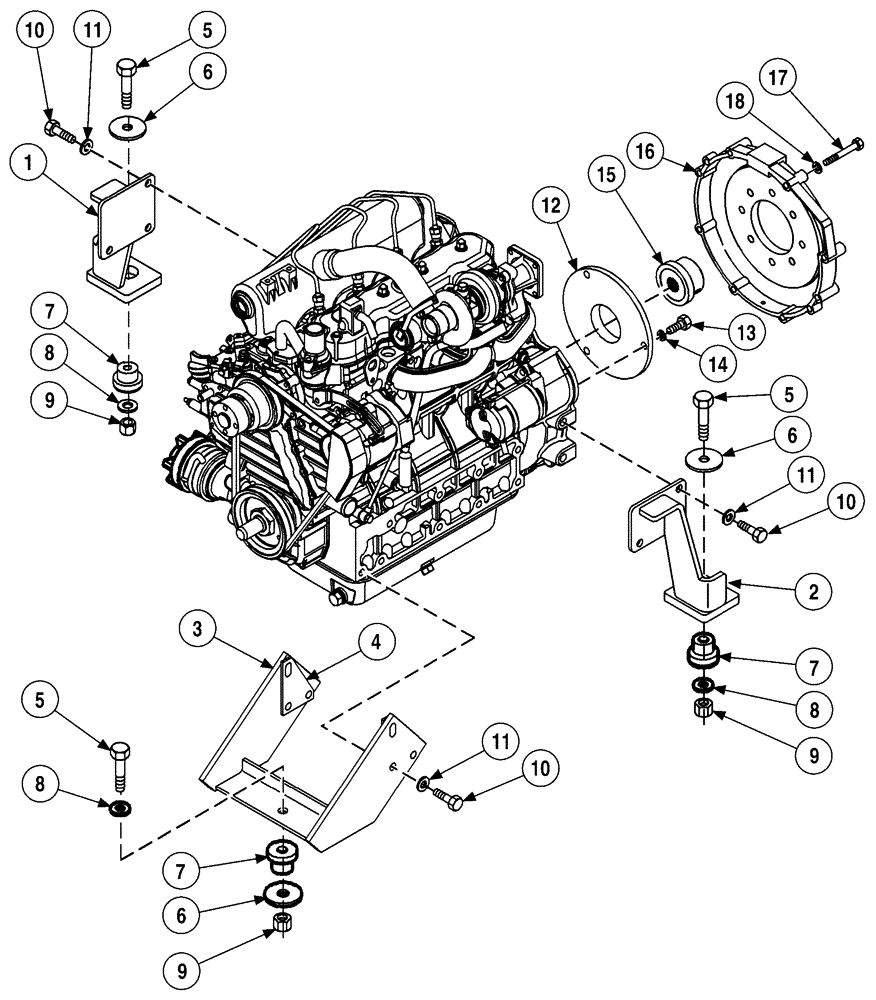

Запчасти Case 6010 (02-01) - ENGINE - MOUNTING (10) - ENGINE

333266A1

ENGINE ASSEMBLY

ENGINE ASSY , Kubota V2003TE Engine

1шт.

1

337012A2

BRACKET

Left-Hand

1шт.

2

337002A2

BRACKET

Right-Hand

1шт.

3

127339A1

MOUNTING PARTS

Includes 4

1шт.

4

106418A1

SHIM

2шт.

5

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

3шт.

6

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

7

D74445

RUBBER MOUNTING

3шт.

8

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

3шт.

9

231-14410

NUT,5/8"-11, GB

3шт.

10

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

12шт.

12

341009A1

FLANGE

Nylon

1шт.

13

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

14

892-11010

LOCK WASHER,M10

3шт.

15

341008A1

COUPLING

19T

1шт.

16

341010A1

MOUNTING PARTS

Pump Drive

1шт.

17

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

8шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
