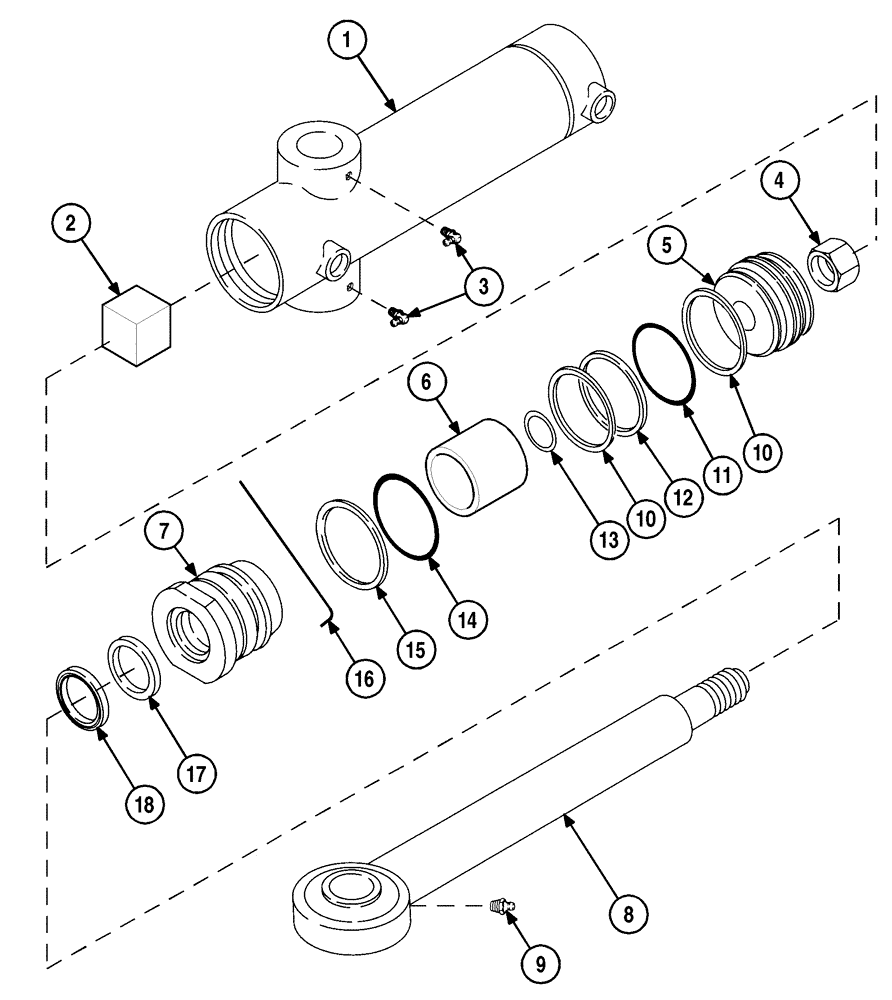

Запчасти Case 6010 (08-34) - CYLINDER ASSY - WRENCH ROTATE (35) - HYDRAULIC SYSTEMS

369898A2

CYLINDER

50,8 ID x 70,62 mm strk, Consists Of 1 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

140226A1

TUBE

1шт.

2

375737A1

BLOCK

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

2шт.

4

231-41310

LOCK NUT,5/8"-11, GB

1шт.

5

110501A1

JACK PISTON

1шт.

6

369899A1

SPACER

1шт.

7

108641C1

GLAND

1шт.

8

140227A1

ROD

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

1шт.

110510A1

SEAL KIT

Seal, Consists of: 10 - 18

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

11

NSS

NOT SOLD SEPARAT

Expander

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

15

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

1шт.

16

461180R1

RETAINER

169 mm (6-1/4 in), Retaining

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

1шт.

18

532773R1

WIPER SEAL

1шт.
