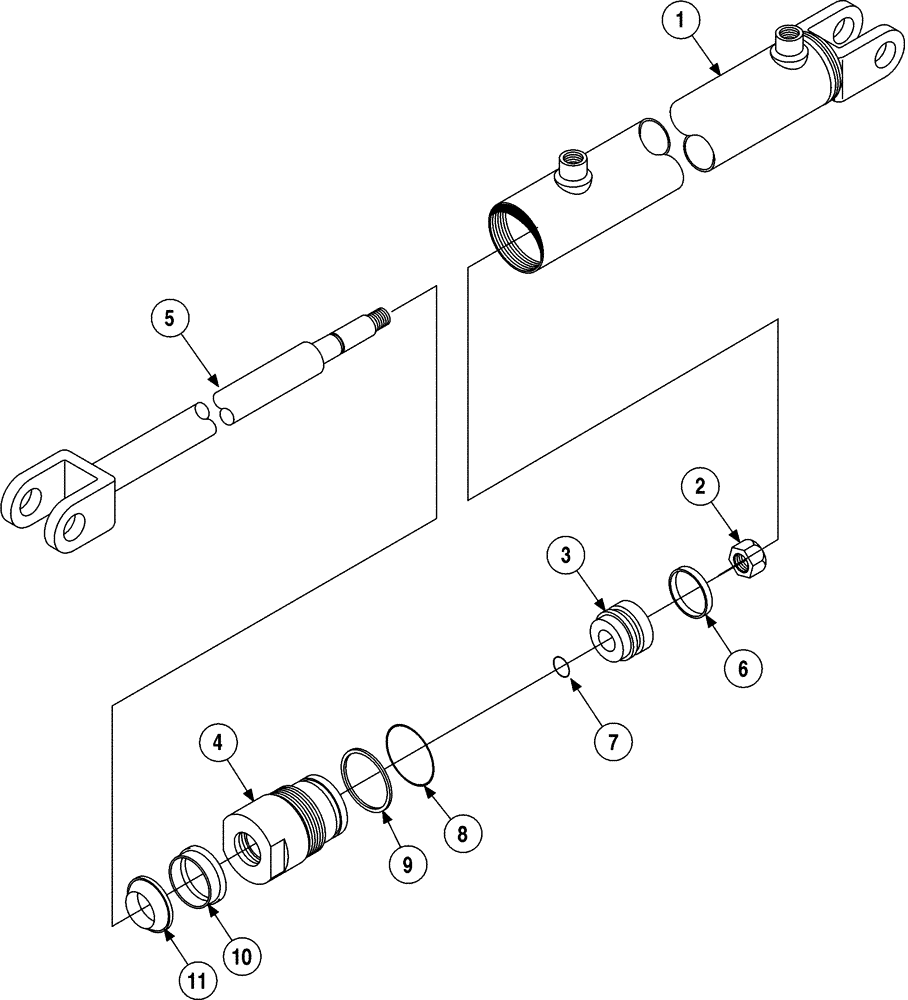

Запчасти Case 6010 (08-32) - CYLINDER ASSY - STAKEDOWN (35) - HYDRAULIC SYSTEMS

337489A1

CYLINDER

Consists o:f 1 - 11

2шт.

1

367997A1

TUBE,33" Length

1шт.

2

230-46112

LOCK NUT,3/4"-16, GA

3/4 NF

1шт.

3

367996A1

PISTON

1шт.

4

367999A1

HEAD

Threaded

1шт.

5

367998A1

ROD ASSY.

1 dia

1шт.

367995A1

SEAL KIT

Seal, Consists of: 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, U-Cup

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Wiper

1шт.
