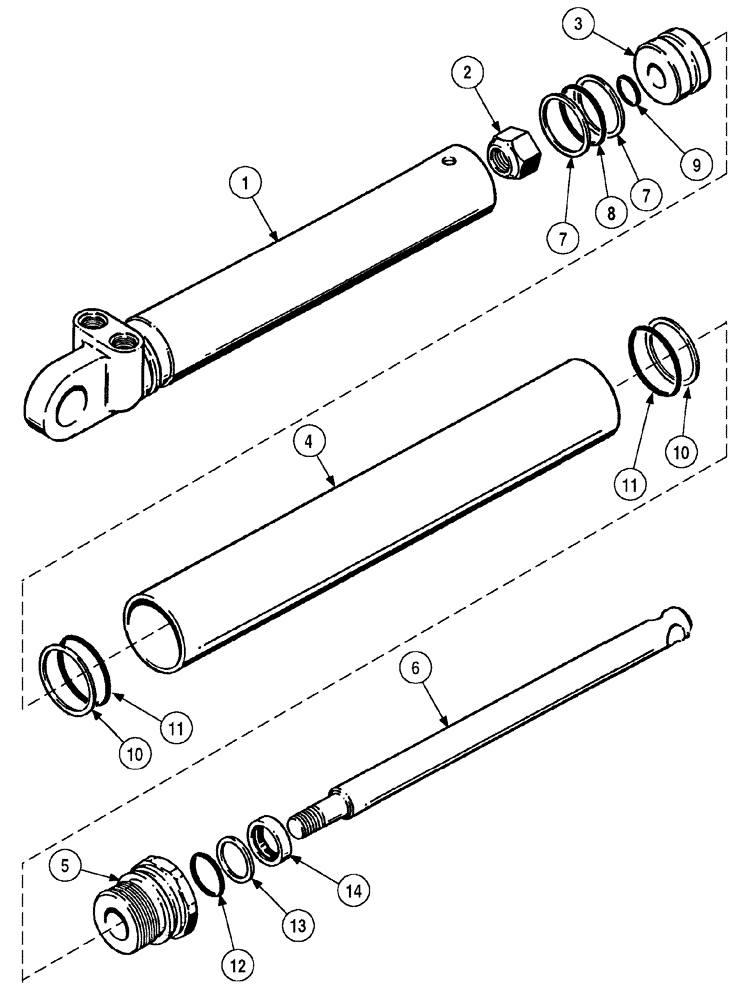

Запчасти Case 6010 (08-31) - CYLINDER ASSY - STABILIZERS (35) - HYDRAULIC SYSTEMS

H514117

CYLINDER BLOCK

51 ID x 305 mm strk, Consists of: 1 - 14

2шт.

1

H52654

HYD CYL SLEEVE

Includes Inner Barrel

1шт.

2

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

1шт.

3

H52670

PISTON ASSY.

1шт.

4

H52662

HYD CYL SLEEVE

Outer

1шт.

5

H52696

BEARING

1шт.

6

H52688

ROD

1шт.

H52704

KIT

Seal, Consists of: 7 - 14

1шт.

7

H754614

WASHER

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

11

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

14

H220475

WIPER SEAL

1шт.
