(08-27) - VALVE ASSY - POWER WRENCH AND STAKEDOWN MANIFOLD

Запчасти Case 6010 (08-27) - VALVE ASSY - POWER WRENCH AND STAKEDOWN MANIFOLD (35) - HYDRAULIC SYSTEMS

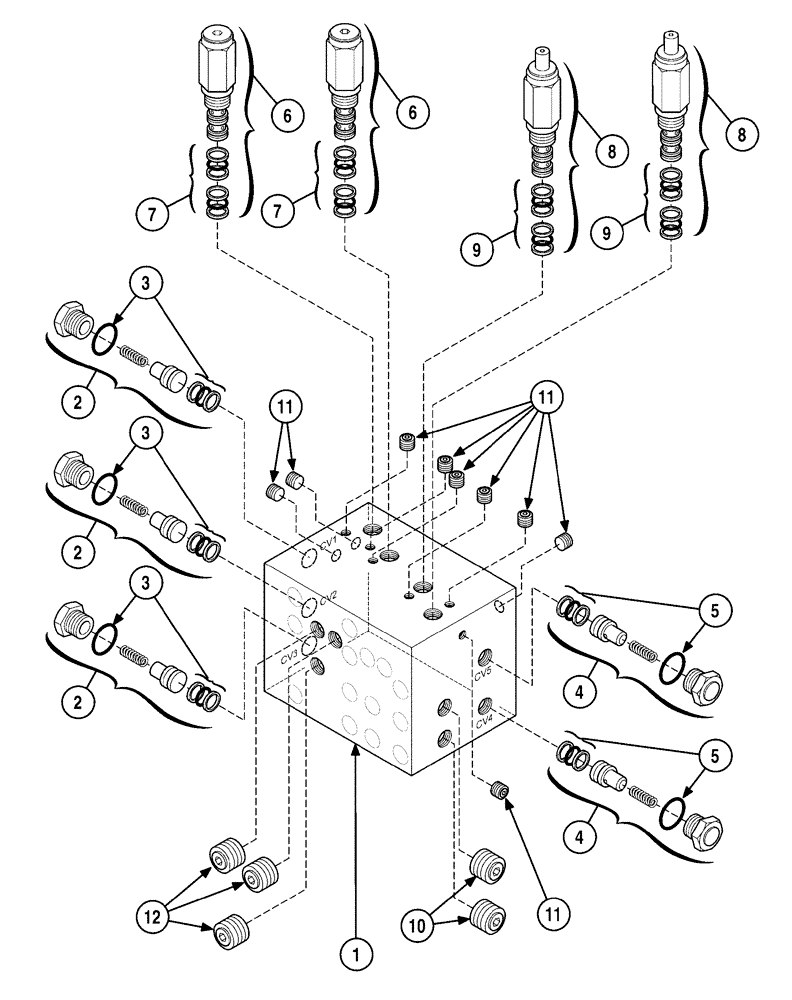

Схема запчастей Case 6010 - (08-27) - VALVE ASSY - POWER WRENCH AND STAKEDOWN MANIFOLD (35) - HYDRAULIC SYSTEMS
3
8
6
7
9
12
4
8
3
7
11
2
5
2
1
3
4
10
11
2
11
5
6
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

336365A1

VALVE

Power Wrench and Stakedown Manifold, Complete, Consists of: 1 - 12

1шт.

365269A1

SEAL KIT

Seal, Complete, Includes: (3) of Ref 3, (2) each of Ref 5, 7 & 9

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

365252A1

VALVE

Includes: 3

3шт.

3

365254A1

SEAL KIT

Seal, Component Parts Not Serviced Separately

1шт.

4

365264A1

VALVE

Includes: 5

2шт.

5

365267A1

SEAL KIT

Seal, Component Parts Not Serviced Separately

1шт.

6

365265A1

VALVE

Includes: 7

2шт.

7

365268A1

SEAL KIT

Seal, Component Parts Not Serviced Separately

1шт.

8

365253A1

VALVE

Includes: 9

2шт.

9

365255A1

SEAL KIT

Seal, Component Parts Not Serviced Separately

1шт.

10

365266A1

FITTING

2шт.

11

365251A1

FITTING

10шт.

12

365231A1

FITTING

3шт.
