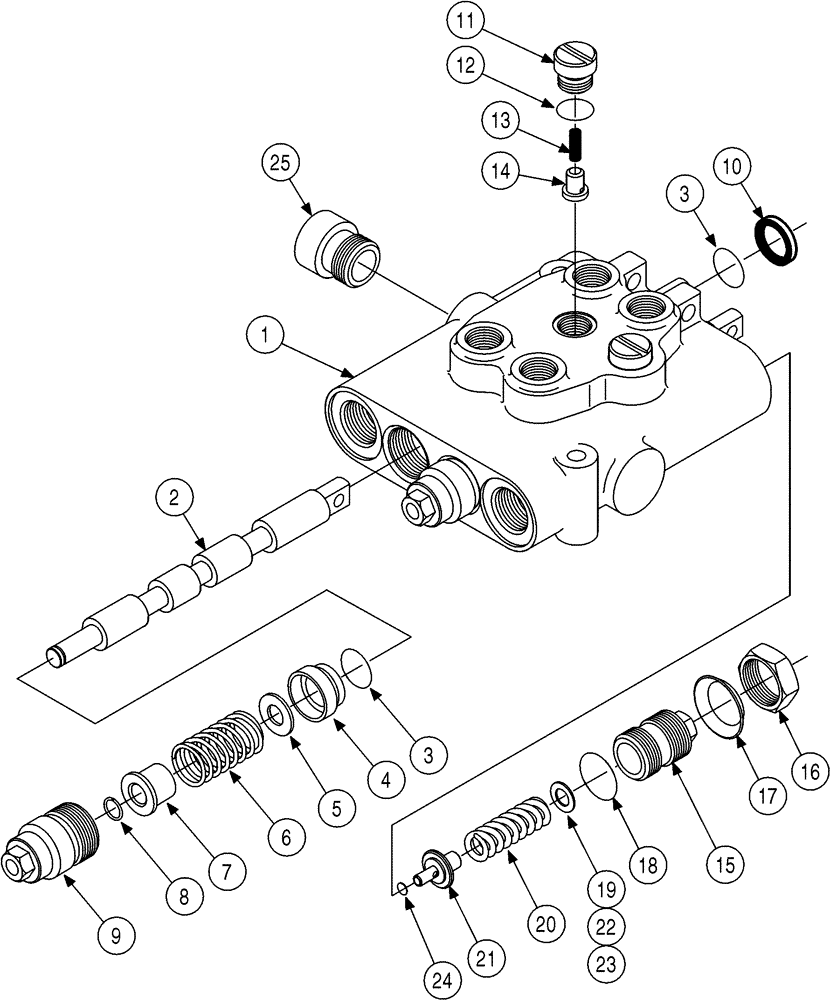

Запчасти Case 6010 (08-25) - VALVE ASSY - STAKEDOWN CONTROL (35) - HYDRAULIC SYSTEMS

336368A1

VALVE

Stakedown, Control, Complete, Consists of: 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

2шт.

3

H438995

O-RING

4шт.

4

674775R1

BUSHING

2шт.

5

N9256

WASHER

2шт.

6

N9254

SPRING

2шт.

7

N9252

SPACER

2шт.

8

N9257

RING, SNAP

RING SNAP

2шт.

9

N9253

CAP

2шт.

10

H435703

SEAL

2шт.

11

H229203

PLUG

1/2 NF, Includes: 12

2шт.

12

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

13

673625R1

SPRING

2шт.

14

F36081

VALVE POPPET

2шт.

15

H673106

PLUG

Includes: 16 - 18

1шт.

16

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

lock

1шт.

17

NSS

NOT SOLD SEPARAT

Washer

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

H220798

SHIM,.035" Thk

1шт.

20

365228A1

SPRING

1шт.

21

F37837

VALVE POPPET

1шт.

22

H746149

SHIM,.015" Thk

1шт.

23

F12267

WASHER

1шт.

24

NSS

NOT SOLD SEPARAT

Seat

1шт.

25

H347906

FITTING

Power Beyond, Includes: 238-5014, 238-5114 & D37070

1шт.

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

1шт.
