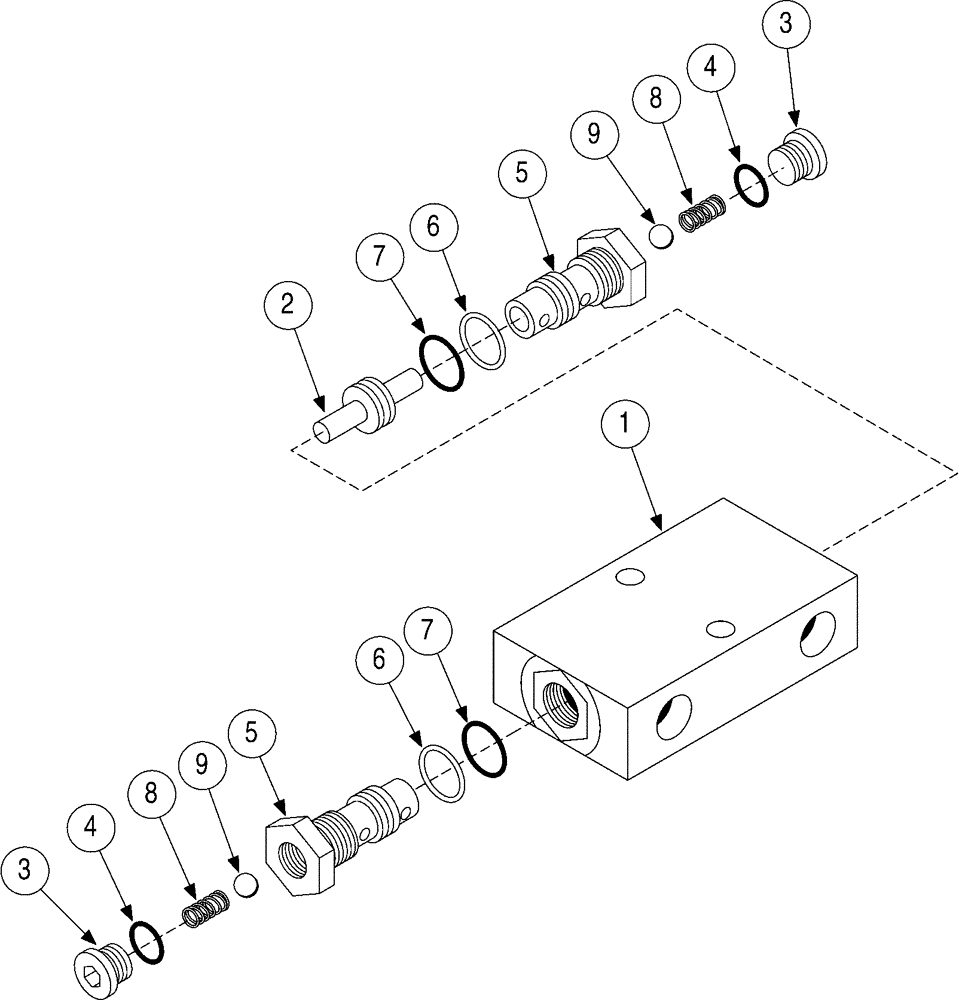

Запчасти Case 6010 (08-23) - VALVE ASSY - CYLINDER LOCK (35) - HYDRAULIC SYSTEMS

348998A1

VALVE

Cylinder, Includes: 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

370711A1

PISTON

1шт.

370712A1

VALVE

Check Valve, Consists of: 3 - 9

2шт.

3

9625178

PLUG,9/16" - 18 ORB

Incl. 4

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Hex

1шт.

6

370714A1

BACK-UP RING

1шт.

7

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

8

370713A1

SPRING

1шт.

9

211-1012

BALL,3/8" Dia

3/8; 24, CRS

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
