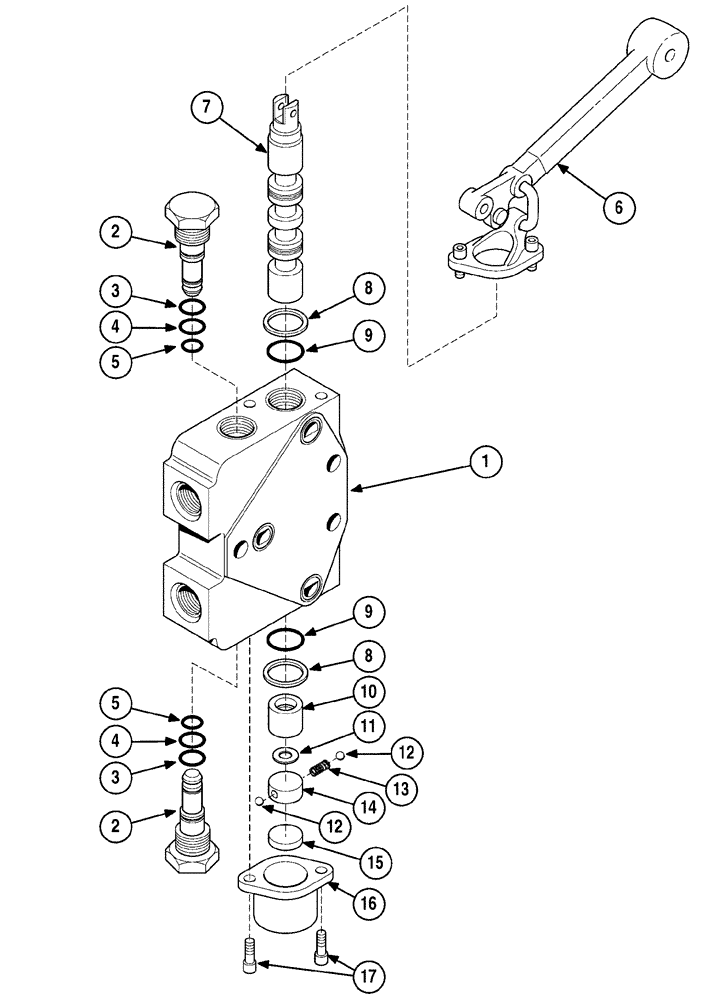

Запчасти Case 6010 (08-22) - VALVE SECTION - AUXILIARY HYDRAULICS (35) - HYDRAULIC SYSTEMS

396131A1

HYD VALVE SECTION

Auxiliary Hydraulics, Consists of: 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

L100937

PLUG

Load Check, Includes: 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

370355A1

KIT

See figure 8-14

1шт.

7

NSS

NOT SOLD SEPARAT

Spool, Includes: 8, 9

1шт.

N8880

SEAL

Spool Seal, Consists of: 8, 9

1шт.

8

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

2шт.

9

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

370356A1

KIT

Consists of: 10 - 17

1шт.

10

N7904

SLEEVE

1шт.

11

NSS

NOT SOLD SEPARAT

Washer, Lock

1шт.

12

NSS

NOT SOLD SEPARAT

Ball

2шт.

13

H325092

SPRING

1шт.

14

NSS

NOT SOLD SEPARAT

Holder

1шт.

15

N7905

STOP

1шт.

16

S301092

FLANGE COVER CAP

1шт.

17

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

1шт.
