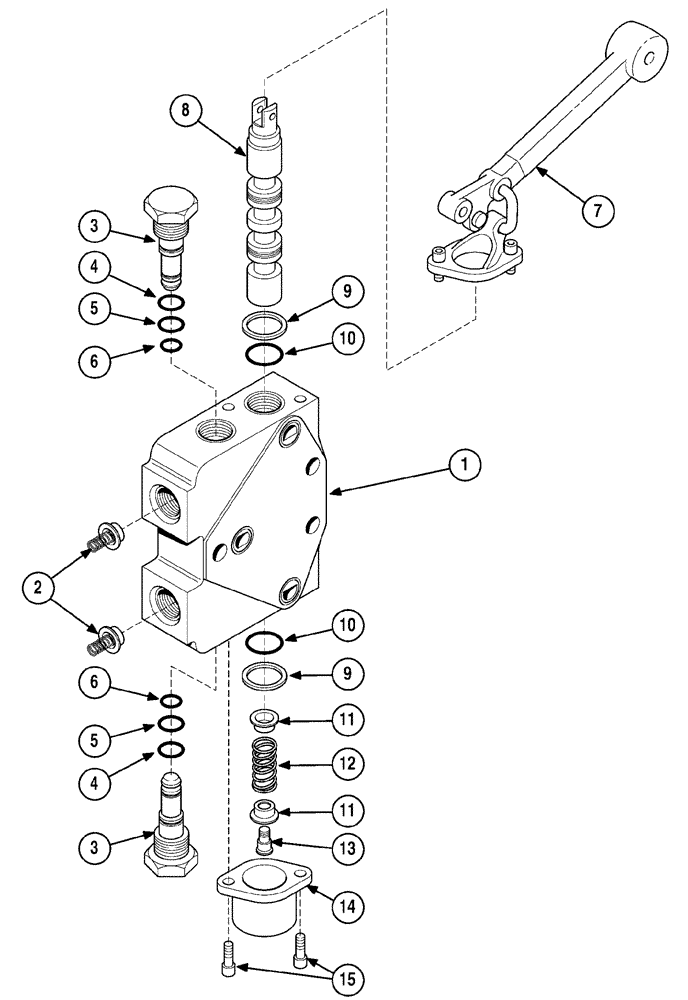

Запчасти Case 6010 (08-21) - VALVE SECTION - BOOM TILT AND STABILIZERS (35) - HYDRAULIC SYSTEMS

396130A1

HYD VALVE SECTION

Boom Tilt and Stabilizers, Consists of: 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

370354A1

RESTRICTOR

2шт.

3

L100937

PLUG

Load Check, Includes: 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

370355A1

KIT

See figure 8-14

1шт.

8

NSS

NOT SOLD SEPARAT

Spool, Includes: 9, 10

1шт.

N8880

SEAL

Spool Seal, Consists of: 9, 10

1шт.

9

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

2шт.

10

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

N8881

KIT

Consists of: 11 - 15

1шт.

11

H267591

SPRING SEAT

2шт.

12

D87306

SPRING

1шт.

13

NSS

NOT SOLD SEPARAT

Screw

1шт.

14

H267583

FITTING

1шт.

15

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

1/4 x 7/8

2шт.
