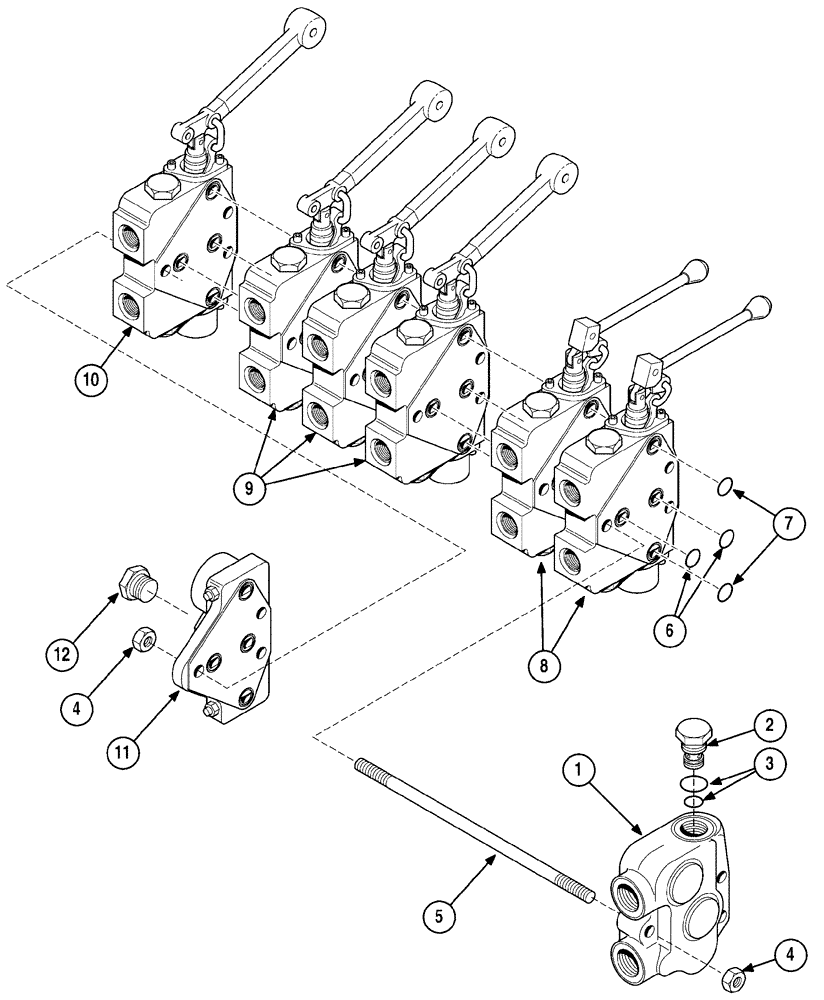

Запчасти Case 6010 (08-19) - VALVE ASSY - REAR CONTROL, 336367A3 (35) - HYDRAULIC SYSTEMS

336367A3

VALVE

Rear Control, Consists of: 1 - 12, For Additional Parts, See figure 8-14

1шт.

1

368974A1

COVER ASSY

Includes: 2, 3

1шт.

2

368980A1

PLUG

Includes: 3

1шт.

3

348740A1

SEAL KIT

Plug Seal

1шт.

368979A1

KIT

Stud, Consists of: 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Nut

6шт.

5

NSS

NOT SOLD SEPARAT

Bolt

3шт.

S302092

SEAL KIT

Seal, Consists of: 6, 7

7шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

8

396129A1

HYD VALVE SECTION

Track Drive, See figure 8-19

2шт.

9

396130A1

HYD VALVE SECTION

Boom Tilt and Stabilizers, See figure 8-21

3шт.

10

396131A1

HYD VALVE SECTION

Auxiliary Hydraulics, See figure 8-22

1шт.

11

368978A1

COVER ASSY

Includes: 12

1шт.

12

86512512

PLUG,7/8" - 14 ORB

Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
