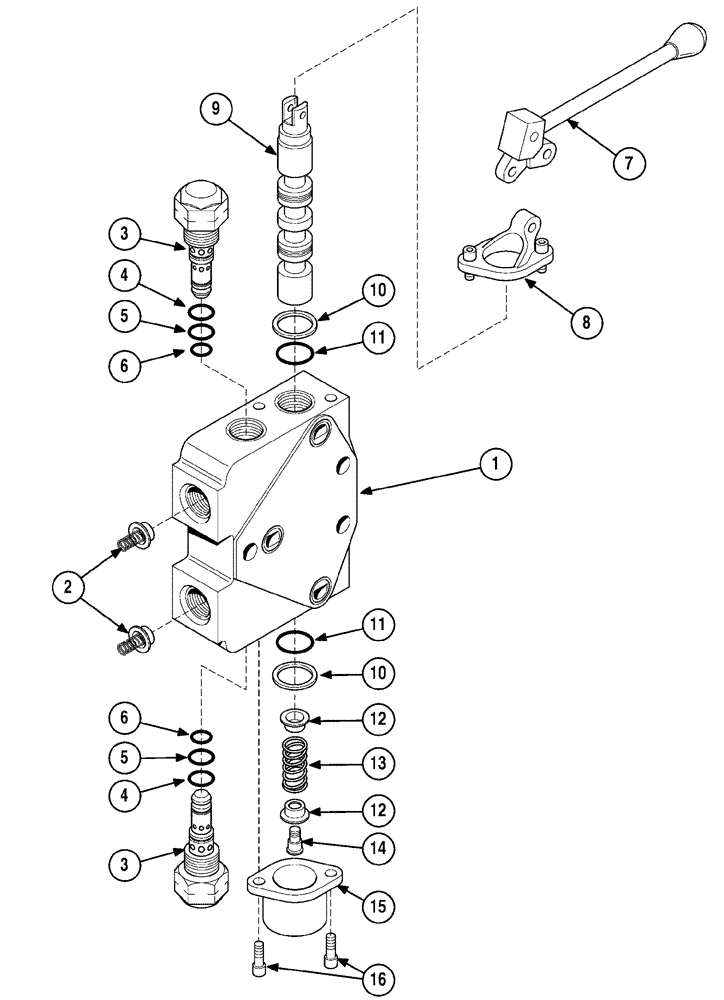

Запчасти Case 6010 (08-16) - VALVE SECTION - TRACK DRIVE (35) - HYDRAULIC SYSTEMS

368975A1

VALVE BLOCK

Track Drive, Consists of: 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

370351A1

RESTRICTOR

2шт.

3

404366A1

VALVE

3000 psi, Includes: 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

370352A1

HANDLE

See figure 8-14

1шт.

8

370353A1

PACKAGE, REPAIR

Bracket, See figure 8-14

1шт.

9

NSS

NOT SOLD SEPARAT

Spool, Includes: 10, 11

1шт.

N8880

SEAL

Spool Seal, Consists of: 10, 11

1шт.

10

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

special

2шт.

11

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

N8881

KIT

spring, Consists of: 12 - 16

1шт.

12

H267591

SPRING SEAT

2шт.

13

D87306

SPRING

1шт.

14

NSS

NOT SOLD SEPARAT

Screw

1шт.

15

H267583

FITTING

1шт.

16

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

1/4 x 7/8

2шт.
