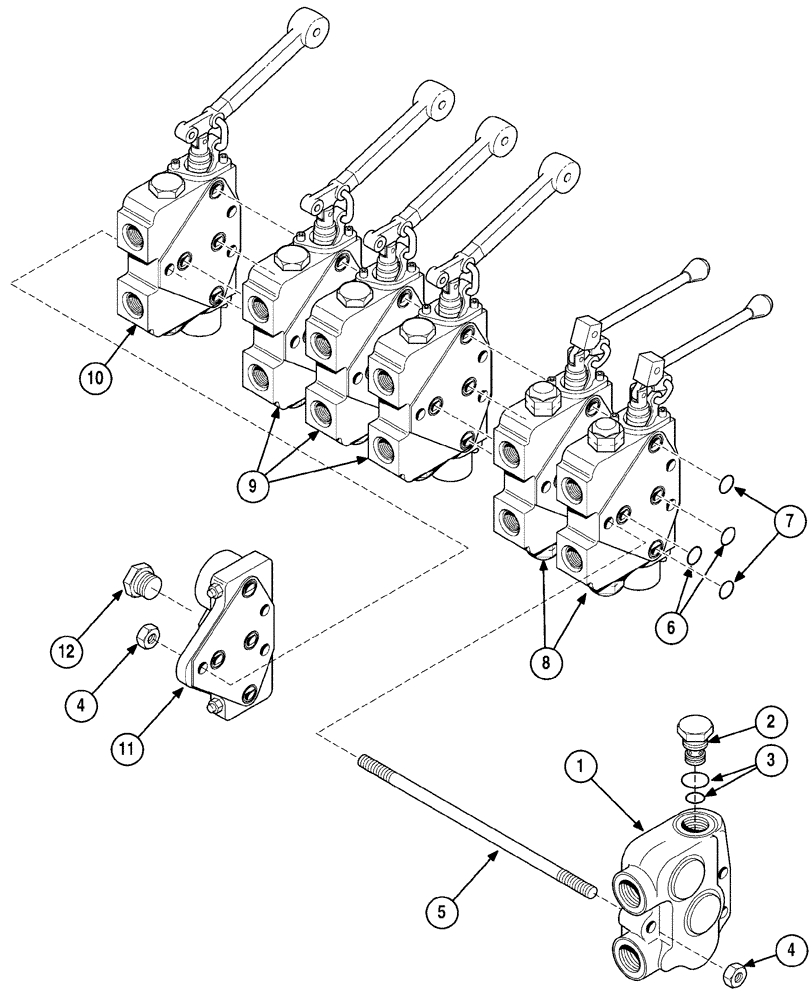

Запчасти Case 6010 (08-15) - VALVE ASSY - REAR CONTROL, 336367A2 (35) - HYDRAULIC SYSTEMS

336367A2

VALVE

Rear Control, Used Only With Fairfield Track Drive Motors, No Longer Available, Order 336367A3, Consists Of 1 - 12, For Additional Parts, See figure 8-14

1шт.

1

368974A1

COVER ASSY

Includes: 2, 3

1шт.

2

368980A1

PLUG

Includes: 3

1шт.

3

348740A1

SEAL KIT

Seal

1шт.

368979A1

KIT

Stud, Consists of: 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Nut

6шт.

5

NSS

NOT SOLD SEPARAT

Bolt

3шт.

S302092

SEAL KIT

Seal, Consists of: 6, 7

7шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

8

368975A1

VALVE BLOCK

Track Drive, See figure 8-16

2шт.

9

368976A1

VALVE BLOCK

Boom Tilt and Stabilizers, See figure 8-17

3шт.

10

368977A1

HYD VALVE SECTION

Auxiliary Hydraulics, See figure 8-18

1шт.

11

368978A1

COVER ASSY

Includes: 12

1шт.

12

86512512

PLUG,7/8" - 14 ORB

Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
