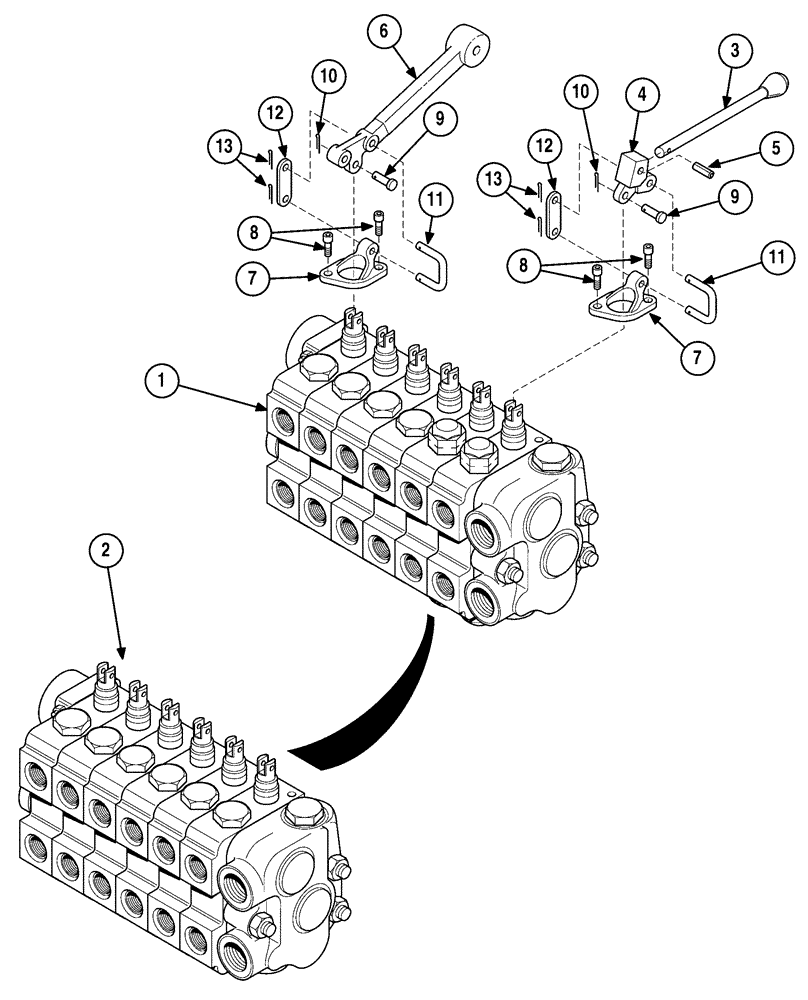

Запчасти Case 6010 (08-14) - VALVE ASSY, REAR CONTROL - HANDLES (35) - HYDRAULIC SYSTEMS

1

336367A2

VALVE

Rear Control, Used Only With Fairfield Track Drive Motors, No Longer Available, Order 336367A3, Includes 2 of 370352A1, 4 of 370355A1, For Additional Parts, See figure 8-15

1шт.

2

336367A3

VALVE

Rear Control, Includes: (2) of 370352A1, (4) of 370355A1, For Additional Parts, See Page(s) 8-19

1шт.

370352A1

HANDLE

Consists of: 3 - 5

2шт.

3

370357A1

HANDLE

1шт.

4

370358A1

HANDLE

linkage

1шт.

5

370359A1

PIN

1шт.

370355A1

KIT

handle, Consists of: 6 - 13

4шт.

6

NSS

NOT SOLD SEPARAT

Handle

1шт.

370353A1

PACKAGE, REPAIR

Bracket, Consists of: 7 - 10

6шт.

7

N7114

BRACKET

1шт.

8

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

2шт.

9

D23693

AXLE PIN

1/4 x 1

1шт.

10

738228C1

1шт.

11

36640

DRAG LINK

Includes: 12, 13

6шт.

12

NSS

NOT SOLD SEPARAT

Plate

1шт.

13

NSS

NOT SOLD SEPARAT

Pin, Cotter

2шт.
