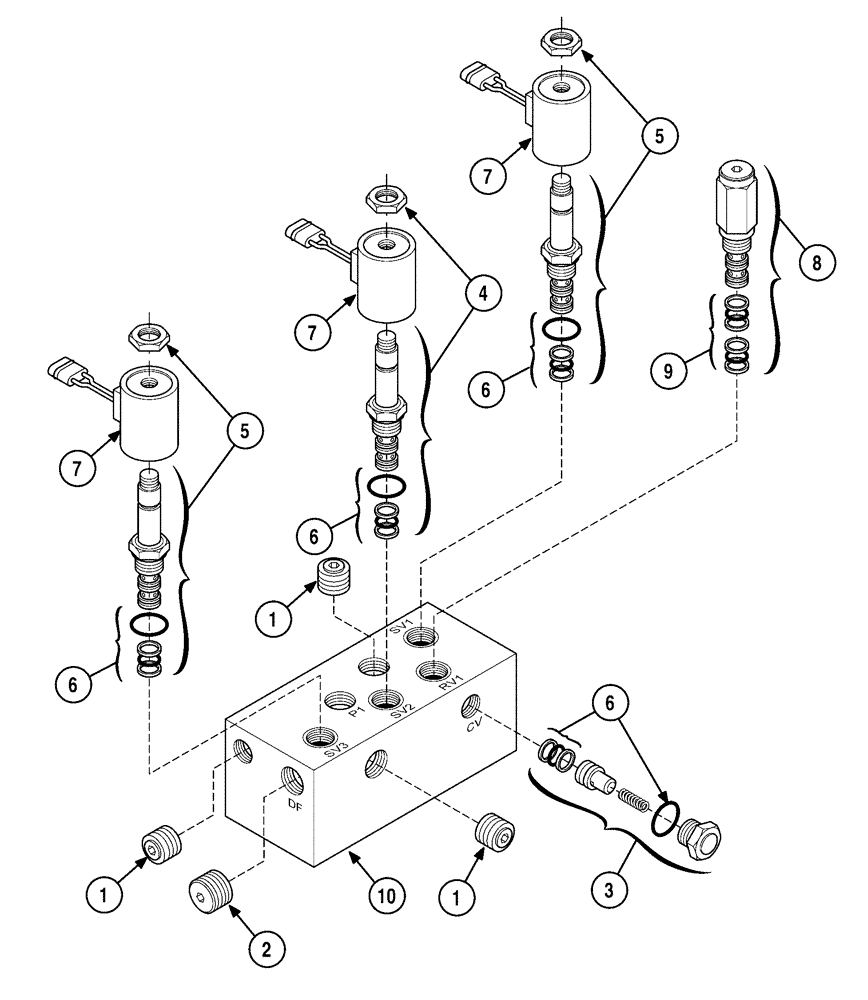

Запчасти Case 6010 (08-13) - VALVE ASSY - SYSTEM CONTROL MANIFOLD (35) - HYDRAULIC SYSTEMS

336364A2

MANIFOLD

System Control, Complete, Consists of: 1 - 10

1шт.

365239A1

SEAL KIT

Seal, Complete, Includes (4) of Ref 6, (1) of Ref 9

1шт.

1

365231A1

FITTING

3шт.

2

86625138

PLUG,7/18" - 14

1шт.

3

365232A1

VALVE

check, Includes: 6

1шт.

4

365234A1

SOLENOID

Normally Open, Includes: 6

1шт.

5

365235A1

SOLENOID

Normally Closed, Includes: 6

2шт.

6

365237A1

SEAL KIT

Seal, Component Parts Not Serviced Separately

1шт.

7

365236A1

COIL

12 V

3шт.

8

365233A1

VALVE

Includes: 9

1шт.

9

365238A1

SEAL KIT

Seal, Component Parts Not Serviced Separately

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.
