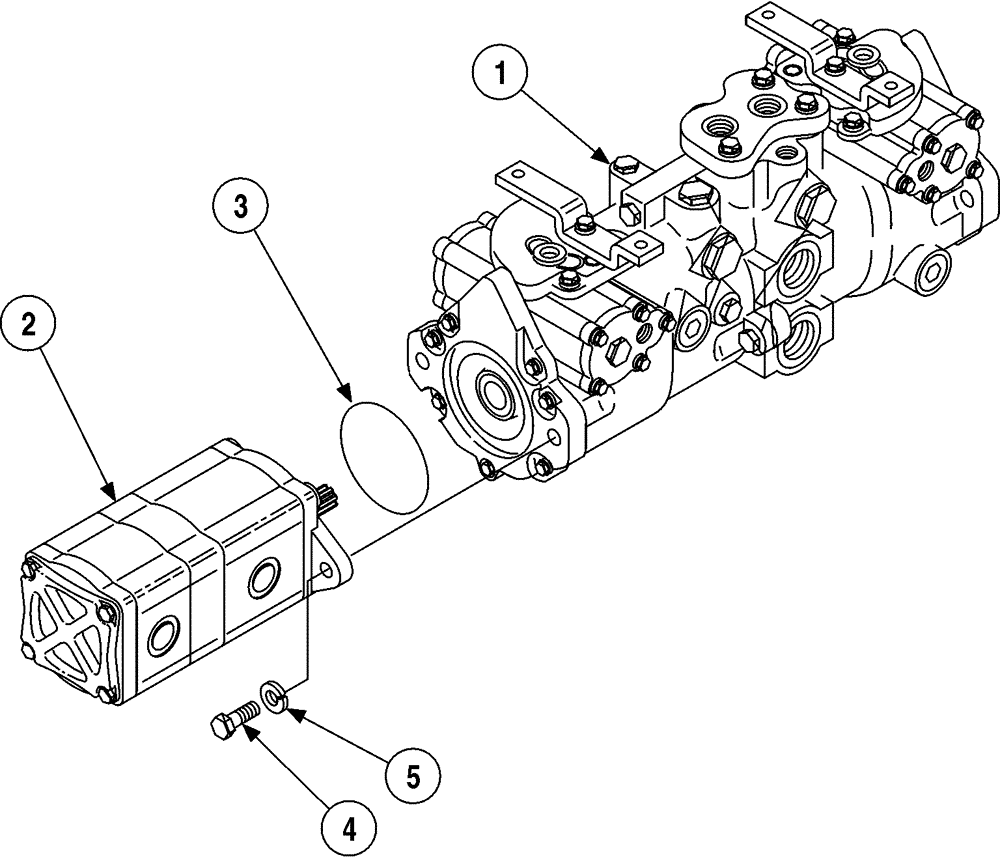

Запчасти Case 6010 (08-11) - MOUNTING - HYDRAULIC DOUBLE GEAR PUMP ASSY (35) - HYDRAULIC SYSTEMS

1

339407A2

PUMP

Tandem Piston, See figures 6-04 - 6-06

1шт.

2

188947A1

PUMP

Double Gear, See figure 8-12

1шт.

3

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.
