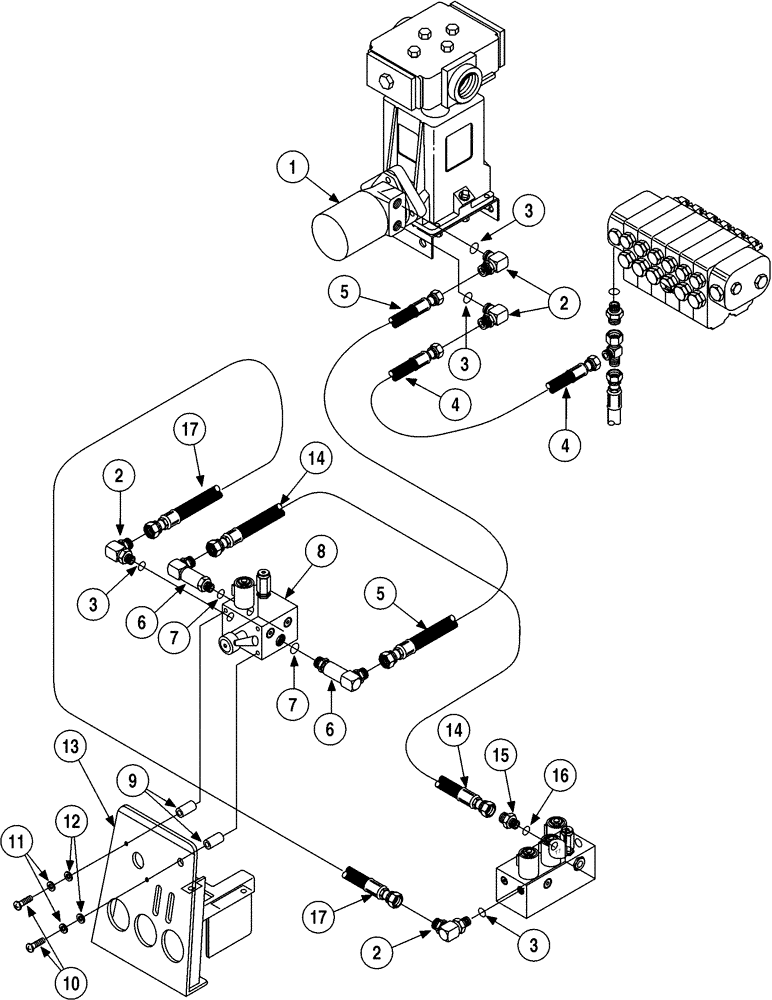

Запчасти Case 6010 (08-09) - HYDRAULICS - DRILL FLUID DRIVE (35) - HYDRAULIC SYSTEMS

1

338978A1

MOTOR

Drill Fluid Drive, High Flow, 20 gpm, Low Pressure, Vendor Part No. 146-1104-002, If Used, See figure 8-35

1шт.

1

338979A1

MOTOR

Drill Fluid Drive, Low Flow, 13 gpm, High Pressure, Vendor Part No. 146-1105-002, If Used, See figure 8-36

1шт.

2

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

356075A1

HOSE ASSY.

2845 mm (112 in), Drill Fluid Drive Motor to Rear Control Valve

1шт.

5

356073A1

HOSE ASSY.,12.70 mm ID x 2340.00 mm, SAE 8

Drill Fluid Control Valve M Port to Motor

1шт.

6

218-5340

90°, 3/4 fl x 7/8 or, Special, Includes: 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

336366A3

VALVE

control

1шт.

336366A3

VALVE

control, Drill Fluid, Replaces: 336366A1, See figure 8-24

1шт.

9

340944A2

TUBE ASSY.

spacer, 10,32 ID x 6 mm

2шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

12

492-11031

LOCK WASHER,5/16"

2шт.

13

340942A1

BRACKET

Mounting

1шт.

14

356074A1

HOSE ASSY.

520 mm (20-1/2 in), Drill Fluid Control Valve T Port to System Control, Valve, T7 Port

1шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

356072A1

HOSE ASSY.,12.70 mm ID x 510.00 mm, SAE 8

System Control Valve DF Port to Drill Fluid Control, Valve P Port

1шт.
