(08-08) - HYDRAULICS - PIPE LOADER AND PIPE LIFTER

Запчасти Case 6010 (08-08) - HYDRAULICS - PIPE LOADER AND PIPE LIFTER (35) - HYDRAULIC SYSTEMS

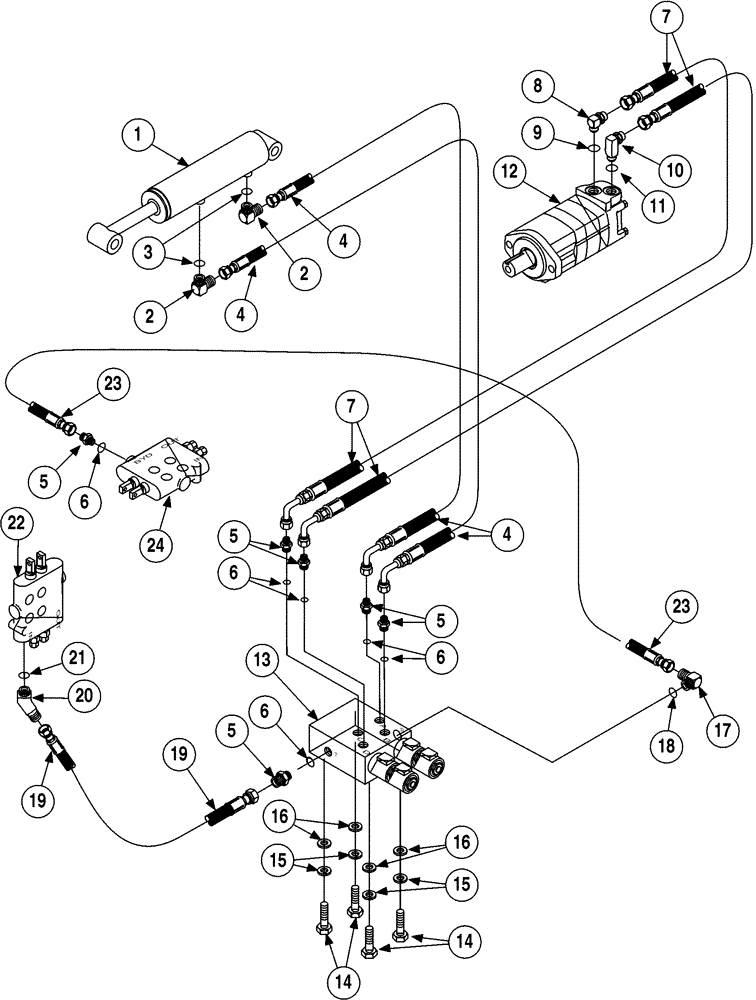

Схема запчастей Case 6010 - (08-08) - HYDRAULICS - PIPE LOADER AND PIPE LIFTER (35) - HYDRAULIC SYSTEMS
11
4
6
12
24
10
2
1
5
4
18
21
9
8
23
19
16
19
5
14
22
6
13
2
17
4
20
15
7
7
16
5
5
14
15
6
3
23
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H674930

STEERING CYLINDER

Pipe Lifter, See figure 8-30

1шт.

2

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90°, 7/16 fl x 9/16 or, Includes: 3

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

356048A1

HOSE ASSY.

2000 mm (78-3/4 in), Pipe Loader Control Valve A and B, Serial Range: Ports-Cylinder

2шт.

5

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

7/16 fl x 3/4 or, Includes: 6

6шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

356045A1

HOSE ASSY.

2100 mm (82-11/16 in), Pipe Loader Control Valve C and D, Serial Range: Ports-Motor

2шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90°, 7/16 fl x adj or, Includes: 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

305781A1

FITTING

90°, Special, Includes: 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

338977A1

HYDRAULIC MOTOR

Pipe Loader, See figure 8-38

1шт.

13

352534A1

MANIFOLD

Pipe Loader Control, See figure 8-28

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

15

492-11031

LOCK WASHER,5/16"

4шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

17

218-5320

ELBOW,90 Degree, 7/16"-20, 37 Degree x 3/4"-16, O-Ring

7/16 fl x 3/4 Or, Includes: 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

356044A1

HOSE ASSY.,6.35 mm ID x 1730.00 mm, SAE 4

Pipe Loader Control Valve Outlet to Power Wrench, Control Valve Inlet

1шт.

20

218-5365

ELBOW,45 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 Or, Includes: 21

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

336369A1

VALVE

Power Wrench Control, See figure 8-27

1шт.

23

356060A1

HOSE ASSY.,6.35 mm ID x 530.00 mm, SAE 4

Stakedown Control Valve Outlet to Pipe Loader Control, Valve Inlet

1шт.

24

336368A1

VALVE

Stakedown Control, See Page(s) 8-25

1шт.
