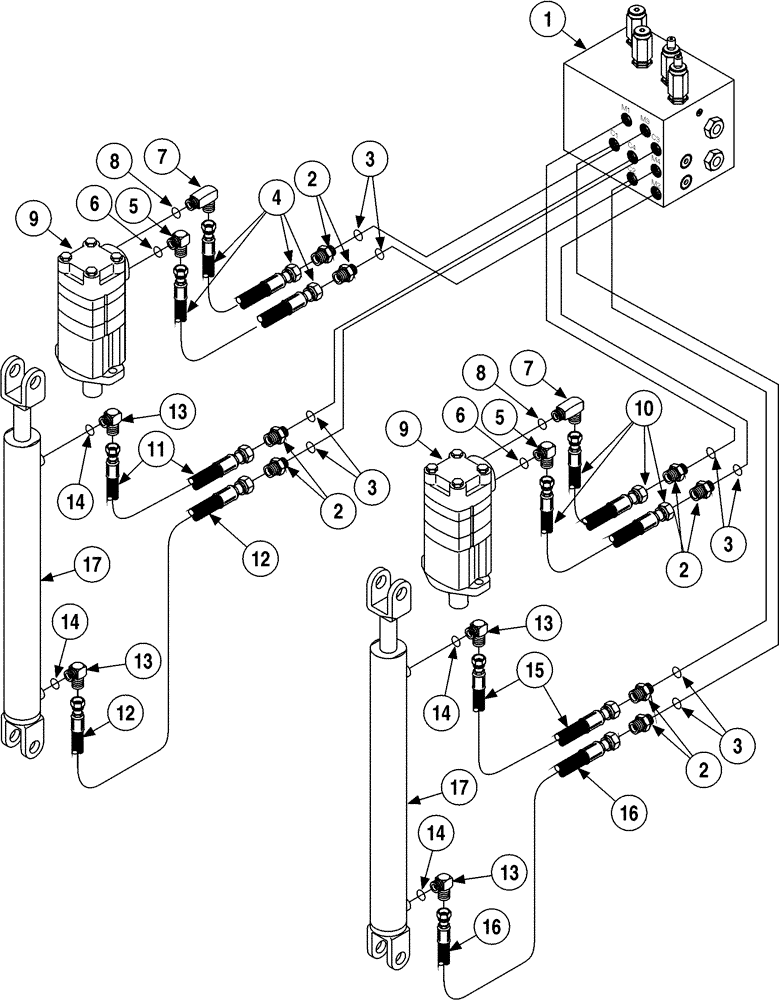

Запчасти Case 6010 (08-07) - HYDRAULICS - STAKEDOWN (35) - HYDRAULIC SYSTEMS

1

336365A1

VALVE

Power Wrench and Stakedown Manifold, See figure 8-27

1шт.

2

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 3

8шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

356068A1

HOSE ASSY.,6.35 mm ID x 2870.00 mm, SAE 4

Manifold M3 and M4 Ports to Stakedown Motor

2шт.

5

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90°, 7/16 fl x adj or, Includes: 6

2шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

305781A1

FITTING

90°, Special, Includes: 8

2шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

10412211

MOTOR, HYDRAULIC

Stakedown, See figure 8-37, For Mounting, See figure 9-09

2шт.

10

356064A1

HOSE ASSY.,6.35 mm ID x 2460.00 mm, SAE 4

Manifold M1 and M2 Ports to Stakedown Motor

2шт.

11

356070A1

HOSE ASSY.,6.35 mm ID x 1755.00 mm, SAE 4

Stakedown Cylinder to Manifold C4 Port

1шт.

12

356071A1

HOSE ASSY.

1205 mm (47-15/32 in), Manifold C3 Port to Stakedown Cylinder

1шт.

13

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 or, Includes: 14

4шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

356066A1

HOSE ASSY.,6.35 mm ID x 1200.00 mm, SAE 4

Left Stakedown Cylinder to Manifold C2 Port

1шт.

16

356067A1

HOSE ASSY.,6.35 mm ID x 600.00 mm, SAE 4

Manifold C1 Port to Left Stakedown Cylinder

1шт.

17

337489A1

CYLINDER

Stakedown, See figure 8-37, For Mounting, See figure 9-09

2шт.
