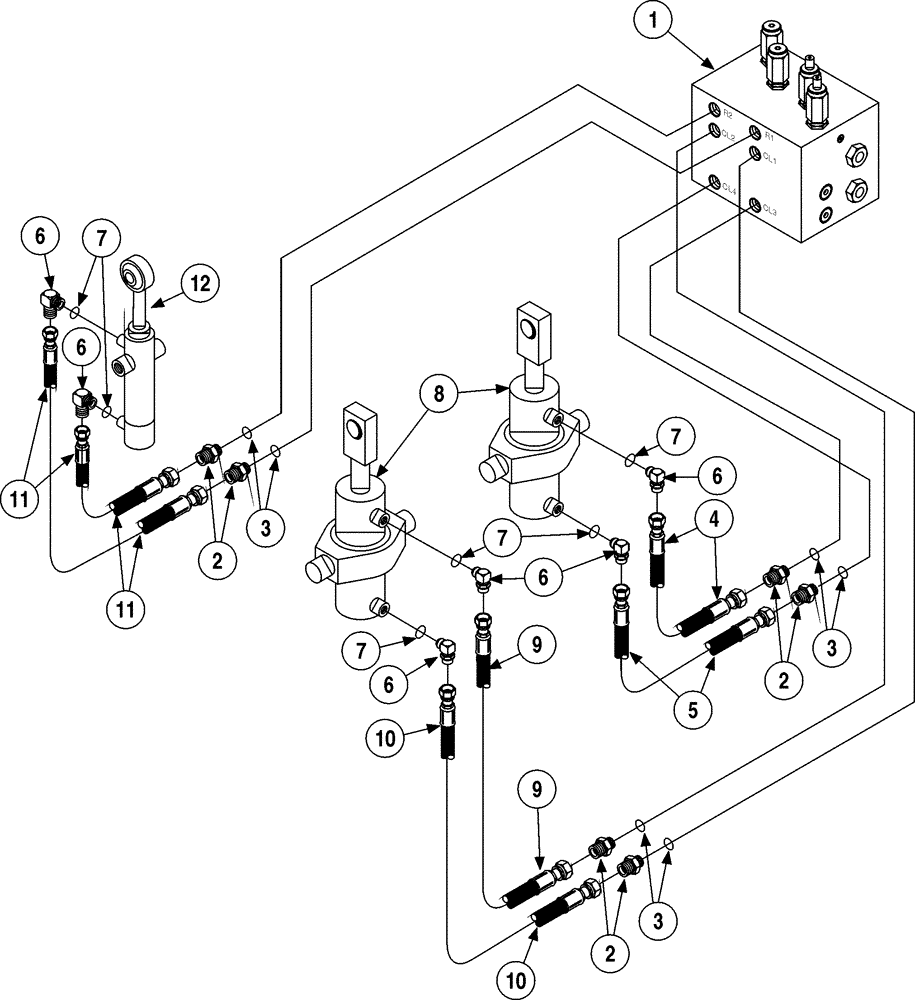

Запчасти Case 6010 (08-06) - HYDRAULICS - POWER WRENCH (35) - HYDRAULIC SYSTEMS

1

336365A1

VALVE

Power Wrench and Stakedown Manifold, See figure 8-27

1шт.

2

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 3

6шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

356042A1

HOSE ASSY.

780 mm (30-3/4 in), Manifold CL3 Port to Fixed Wrench Clamp Cylinder

1шт.

5

356043A1

HOSE ASSY.

715 mm (28-5/32), Manifold CL4 Port to Fixed Wrench Clamp Cylinder

1шт.

6

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90°, 7/16 fl x 9/16 or, Includes: 237-6006

6шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

335701A1

CYLINDER

Fixed Wrench Clamp and Rotating Wrench Clamp, See figure 8-33

2шт.

9

356041A1

HOSE ASSY.,6.35 mm ID x 920.00 mm, SAE 4

Manifold CL2 Port to Rotating Wrench Clamp Cylinder

1шт.

10

356040A1

HOSE ASSY.,6.35 mm ID x 970.00 mm, SAE 4

Manifold CL1 Port to Rotating Wrench Clamp Cylinder

1шт.

11

356038A1

HOSE ASSY.,6.35 mm ID x 1145.00 mm, SAE 4

Manifold R1 and R2 Ports to Wrench Rotate Cylinder

2шт.

12

369898A2

CYLINDER

50,8 ID x 70,62 mm strk, Wrench Rotate, See figure 8-34

1шт.
