(08-04) - HYDRAULICS - BOOM TILT AND REAR STABILIZERS

Запчасти Case 6010 (08-04) - HYDRAULICS - BOOM TILT AND REAR STABILIZERS (35) - HYDRAULIC SYSTEMS

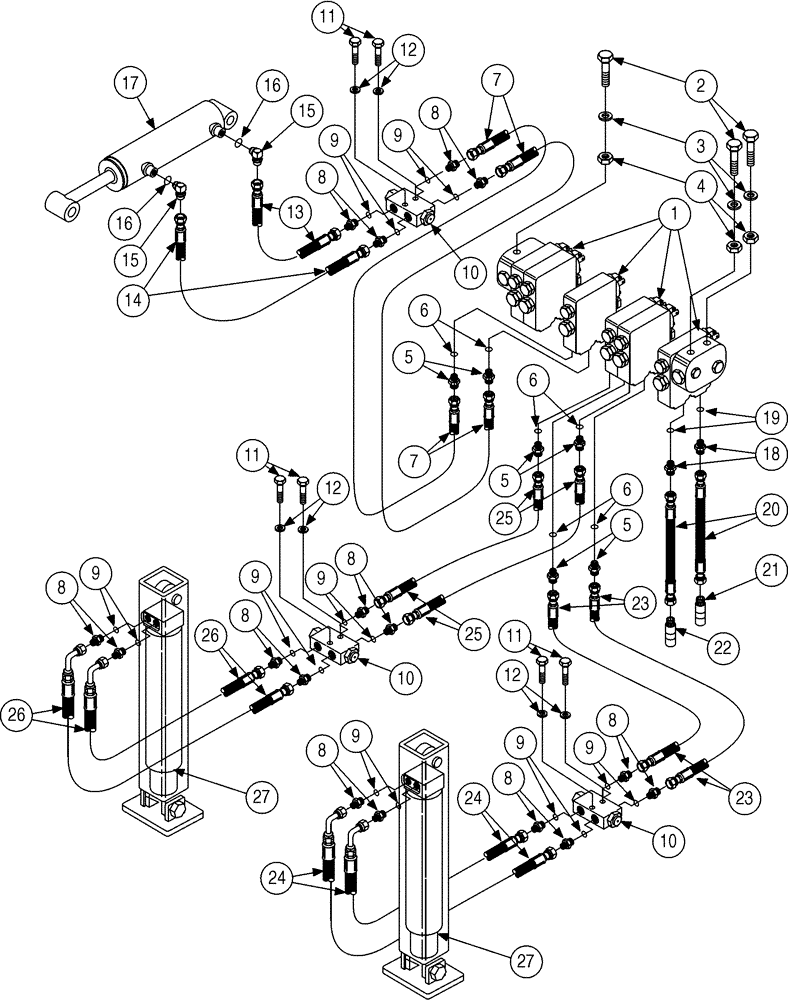

Схема запчастей Case 6010 - (08-04) - HYDRAULICS - BOOM TILT AND REAR STABILIZERS (35) - HYDRAULIC SYSTEMS
6
10
7
5
9
8
5
23
8
8
12
8
2
13
17
11
21
20
8
11
8
9
18
15
23
7
8
9
22
26
16
27
12
6
14
5
24
8
9
9
6
9
11
24
15
10
25
16
25
9
9
4
3
27
10
1
12
26
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

336367A2

VALVE

Rear Control, Used Only With Fairfield Track Drive Motors, No Longer Available, Order 336367A3, See figure 8-14

1шт.

1

336367A3

VALVE

Rear Control, See figure 8-14

1шт.

2

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

4

231-1445

NUT,5/16"-18, GB

3шт.

5

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes: 6

6шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

356031A1

HOSE ASSY.,6.35 mm ID x 1870.00 mm, SAE 4

Rear Control Valve Boom Tilt Section to Lock Valve

2шт.

8

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 9

16шт.

10

348998A1

VALVE

Cylinder Lock, See figure 8-23

3шт.

11

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1/4 x 1-3/4

6шт.

12

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

6шт.

13

356034A1

HOSE ASSY.,6.35 mm ID x 265.00 mm, SAE 4

Boom Tilt Cylinder to Lock Valve

1шт.

14

356035A1

HOSE ASSY.,6.35 mm ID x 355.00 mm, SAE 4

Boom Tilt Cylinder to Lock Valve

1шт.

15

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90°, 7/16 fl x 9/16 or, Includes: 16

2шт.

17

H674312

CYLINDER

Boom Tilt, See figure 8-29

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

370113A1

HOSE ASSY.

300 mm (11-13/16 in)

2шт.

21

15050212

NIPPLE, LUBE

NIPPLE 1/2 NPT, Male

1шт.

22

15050112

COUPLING

1/2 NPT, Female

1шт.

23

356030A1

HOSE ASSY.,6.35 mm ID x 725.00 mm, SAE 4

Rear Control Valve Left Stabilizer Section to Lock Valve

2шт.

24

356029A1

HOSE ASSY.

395 mm (15-9/16 in), Left Stabilizer Lock Valve to Stabilizer Cylinder

2шт.

25

356033A1

HOSE ASSY.

1600 mm (63 in), Rear Control Valve Right Stabilizer Section to Lock, Valve

2шт.

26

356032A1

HOSE ASSY.

1345 mm (53 in), Right Stabilizer Lock Valve to Stabilizer Cylinder

2шт.

27

H514117

CYLINDER BLOCK

51 ID x 305 mm strk, Stabilizers, See figure 8-31

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
