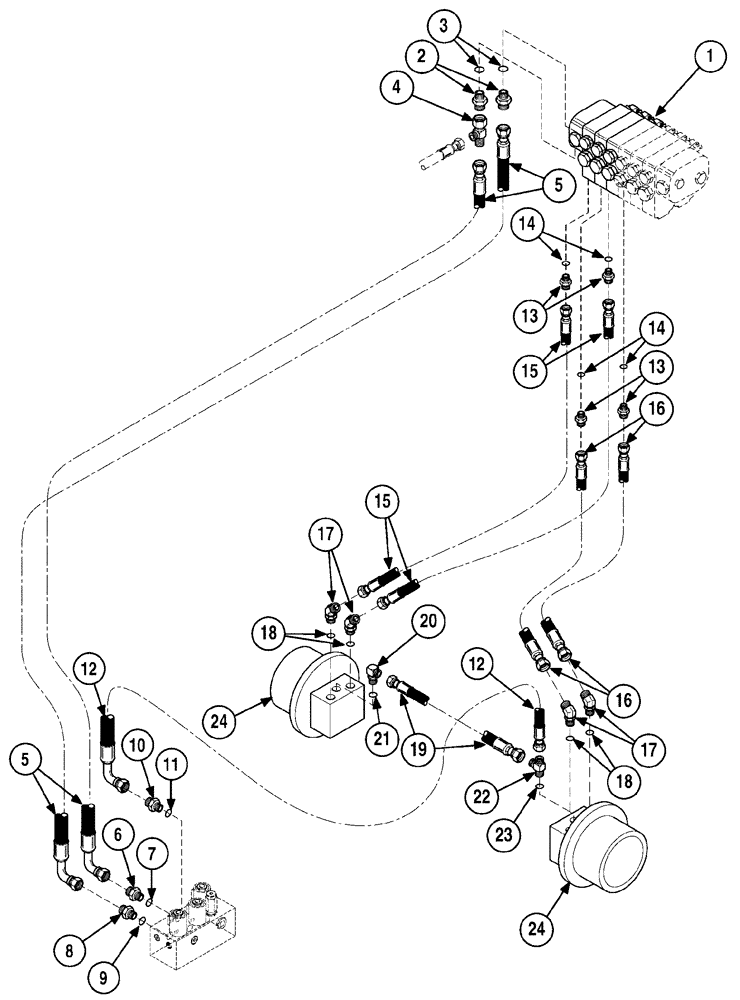

Запчасти Case 6010 (08-03) - HYDRAULICS - REAR CONTROLS AND TRACK DRIVE, MODELS W/ FAIRFIELD DRIVE MOTORS (35) - HYDRAULIC SYSTEMS

1

336367A2

VALVE

Rear Control, Used Only With Fairfield Track Drive Motors, No Longer Available, Order: 336367A3, See figure 8-14

1шт.

1

336367A3

VALVE

Rear Control, See figure 8-14

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

5

356027A1

HOSE ASSY.

2660 mm (104-3/4 in), System Control Valve TD and T6 Ports to Rear Control, Valve

2шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 9

5шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 11

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

356039A1

HOSE ASSY.,6.35 mm ID x 1565.00 mm, SAE 4

System Control Valve T5 Port to Track Drive Motor

1шт.

13

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes: 14

4шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

356015A1

HOSE ASSY.,9.65 mm ID x 1785.00 mm, SAE 6

Rear Control Valve Right Track Drive Section to Right, Track Drive Motor

2шт.

16

356016A1

HOSE ASSY.,9.65 mm ID x 1600.00 mm, SAE 6

Rear Control Valve Left Track Drive Section to Left, Track Drive Motor

2шт.

17

218-5342

ELBOW,45 Degree, 9/16"-18, 37 Degree x 7/8"-14, O-Ring

9/16 fl x 7/8 Or, Includes: 18

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

356017A1

HOSE ASSY.,6.35 mm ID x 850.00 mm, SAE 4

Jumper, At Track Drive Motors

1шт.

20

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj Or, Includes: 21

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes: 23

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

TX202604

MOTOR, HYDRAULIC

Track Drive, Complete, See figure 5-06

2шт.
