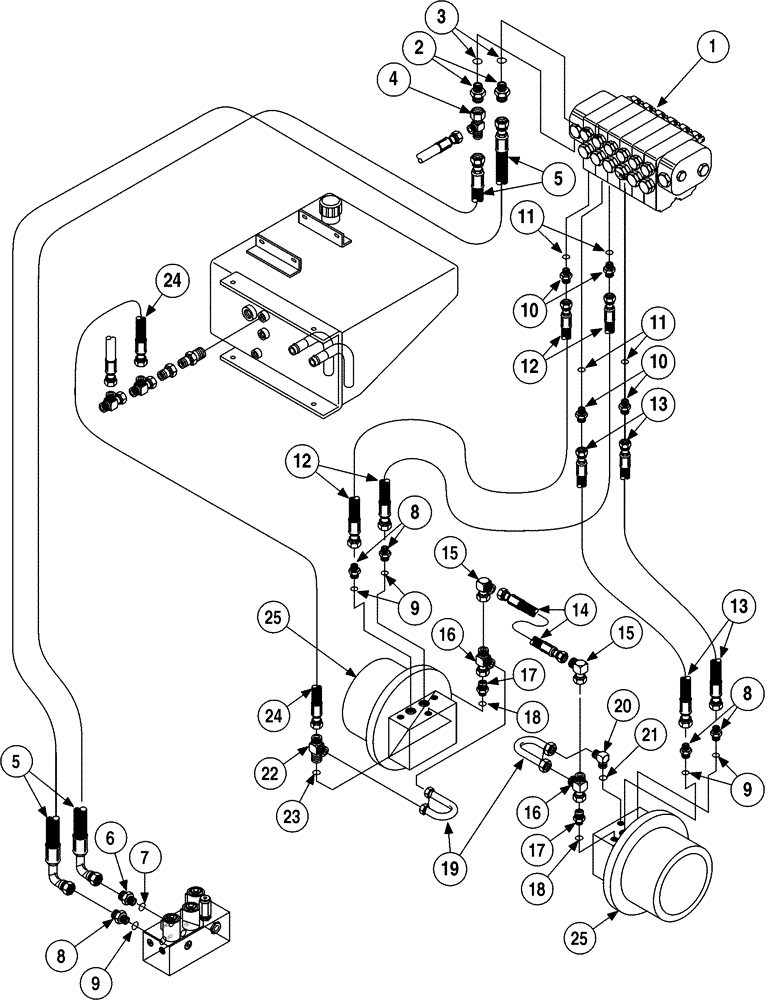

Запчасти Case 6010 (08-02) - HYDRAULICS - REAR CONTROLS AND TRACK DRIVE, MODELS W/ NACHI DRIVE MOTORS (35) - HYDRAULIC SYSTEMS

1

336367A3

VALVE

Rear Control, See figure 8-14

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

5

356027A1

HOSE ASSY.

2660 mm (104-3/4 in), System Control Valve TD and T6 Ports to Rear Control, Valve

2шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 9

5шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes: 11

4шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

385851A2

HOSE ASSY.

1990 mm (78-11/32 in), Rear Control Valve Right Track Drive Section to Track, Drive Motor

2шт.

13

385852A2

HOSE ASSY.

1800 mm (70-27/32 in), Rear Control Valve Left Track Drive Section to Track, Drive Motor

2шт.

14

385853A2

HOSE ASSY.

850 mm (33-1/2 in), Jumper, At Track Drive Motors

1шт.

15

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

16

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 18

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

385607A1

TUBE,0.375" OD, 163.57 mm Length

Special

2шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 21

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: 23

1шт.

24

385853A2

HOSE ASSY.

850 mm (33-1/2 in), Track Drive Motor to Reservoir, For Attaching Parts, See figure 6-02, Ref 12

1шт.

25

352423A1

MOTOR, HYDRAULIC

Track Drive, Complete, See figures 5-03 - 5-05

2шт.
