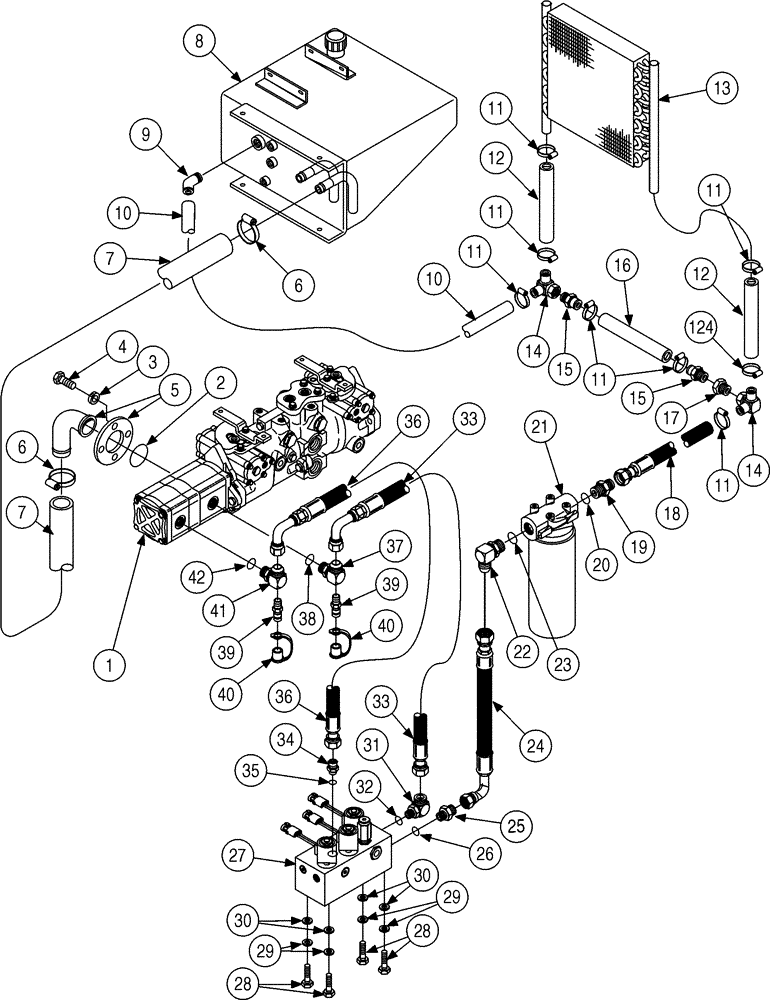

Запчасти Case 6010 (08-01) - HYDRAULICS - SUPPLY AND SYSTEM CONTROL (35) - HYDRAULIC SYSTEMS

1

188947A1

PUMP

Double Gear, See figure 8-12

1шт.

2

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Used with Ref 5

1шт.

3

492-11044

LOCK WASHER,7/16"

4шт.

4

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

5

119152A1

ELBOW

90°, Flanged Tube Elbow

1шт.

6

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

7

356012A1

HOSE,31.75 mm ID x 1780.00 mm, SAE 20

(70-5/, Reservoir to Gear Pump

1шт.

8

336493A2

TANK

Hydraulic Oil, See figure 8-10

1шт.

9

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

45°, 1-5/16 fl x 1 PT

1шт.

10

356056A1

HOSE ASSY.,25.40 mm ID x 1545.00 mm, SAE 16

At Reservoir

1шт.

11

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

8шт.

12

H415471

SPARE PART , 221 mm (8-3/4 in), At Oil Cooler, Cut From: 3106782R1

2шт.

13

109688A1

COOLER, OIL

1шт.

14

358884A1

FITTING

2шт.

15

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

3/4 PT x barb, Special

2шт.

16

H307918

HOSE ASSY.

Jumper

1шт.

17

H627513

VALVE

Special

1шт.

18

356055A1

HOSE ASSY.,25.40 mm ID x 1235.00 mm, SAE 16

Return Filter Outlet to Oil Cooler

1шт.

19

356498A1

FITTING

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

336740A1

FILTER ASSY

oil, Return Circuit, Includes: Head, 367994A1, 186184A1

1шт.

NSS

NOT SOLD SEPARAT

Head, Filter

1шт.

367994A1

ELEMENT

1шт.

186184A1

SENSOR

Differential Pressure

1шт.

22

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes: 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

24

356036A1

HOSE ASSY.

345 mm (13-5/8 in), System Control Valve T Port to Return Filter Inlet

1шт.

25

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

336364A2

MANIFOLD

System Control, See figure 8-13

1шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

29

492-11031

LOCK WASHER,5/16"

4шт.

30

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

31

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

356014A1

HOSE ASSY.,12.70 mm ID x 545.00 mm, SAE 8

Gear Pump P2 Port to System Control Valve, P2 Port

1шт.

34

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 35

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

356028A1

HOSE ASSY.

470 mm (18-1/2 in), Gear Pump P1 Port to System Control Valve P1 Port

1шт.

37

357535A1

ELBOW

90°, Includes: 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

39

H434164

COUPLING

Diagnostic

2шт.

40

H434163

DUST CAP

2шт.

41

357537A1

ELBOW

Special, Includes: 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
