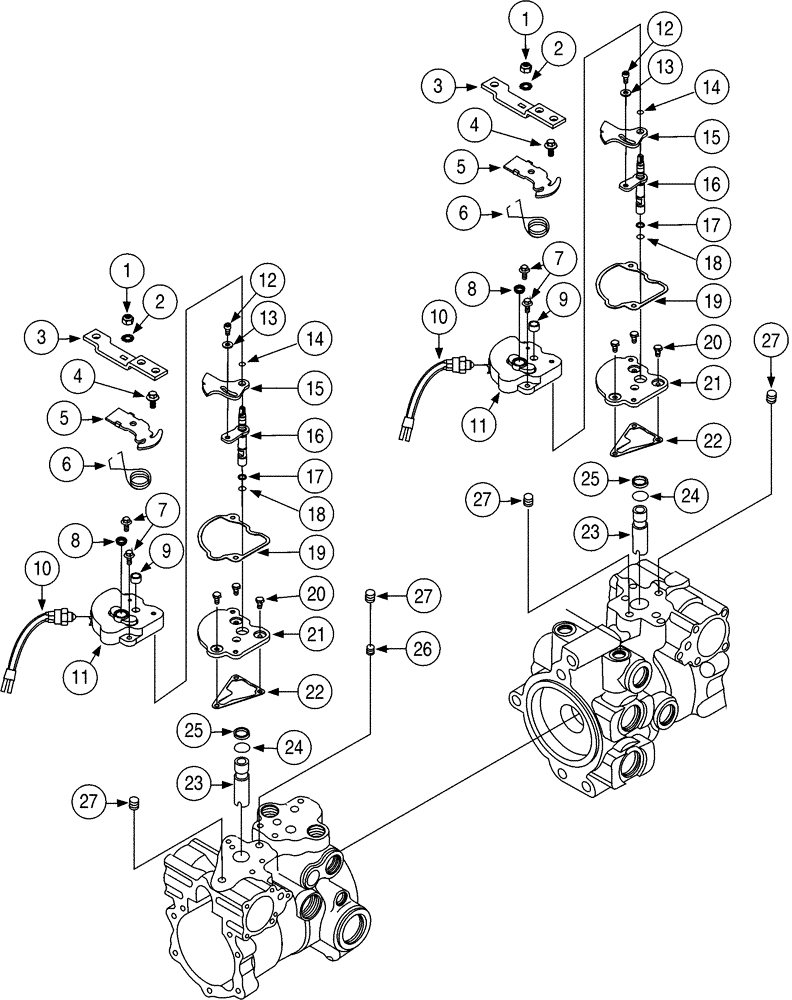

Запчасти Case 6010 (06-06) - PUMP, TANDEM PISTON - HYDROSTATIC, CONTROLS (29) - HYDROSTATIC DRIVE

339407A2

PUMP

Includes: 1 - 27, For Additional Parts, See figures 6-04 - 6-05

1шт.

140008A1

GASKET KIT

Includes 17, 18, 24, 25, For Additional Parts, See figures 6-04 - 6-05

1шт.

1

H436054

SPECIAL NUT,Lock, 5/16" - 18

lock

2шт.

2

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

2шт.

3

N13251

HANDLE

2шт.

4

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

2шт.

5

N13250

BRACKET

2шт.

6

N13248

SPRING,3/4" OD

2шт.

7

NSS

NOT SOLD SEPARAT

Screw

2шт.

8

NSS

NOT SOLD SEPARAT

Plug

2шт.

9

NSS

NOT SOLD SEPARAT

Spacer

2шт.

10

NSS

NOT SOLD SEPARAT

Switch, Neutral Start

2шт.

11

NSS

NOT SOLD SEPARAT

Cover

2шт.

12

NSS

NOT SOLD SEPARAT

Screw

2шт.

13

NSS

NOT SOLD SEPARAT

Washer

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

15

NSS

NOT SOLD SEPARAT

Cam

2шт.

16

NSS

NOT SOLD SEPARAT

Spool Assy

2шт.

17

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

19

NSS

NOT SOLD SEPARAT

Gasket, Cover

2шт.

20

NSS

NOT SOLD SEPARAT

Screw

6шт.

21

NSS

NOT SOLD SEPARAT

Plate

2шт.

22

NSS

NOT SOLD SEPARAT

Gasket, Plate

2шт.

23

110671A2

SLEEVE

Includes: 24, 25

2шт.

24

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

26

H435773

PLUG

1шт.

27

NSS

NOT SOLD SEPARAT

Plug

4шт.
