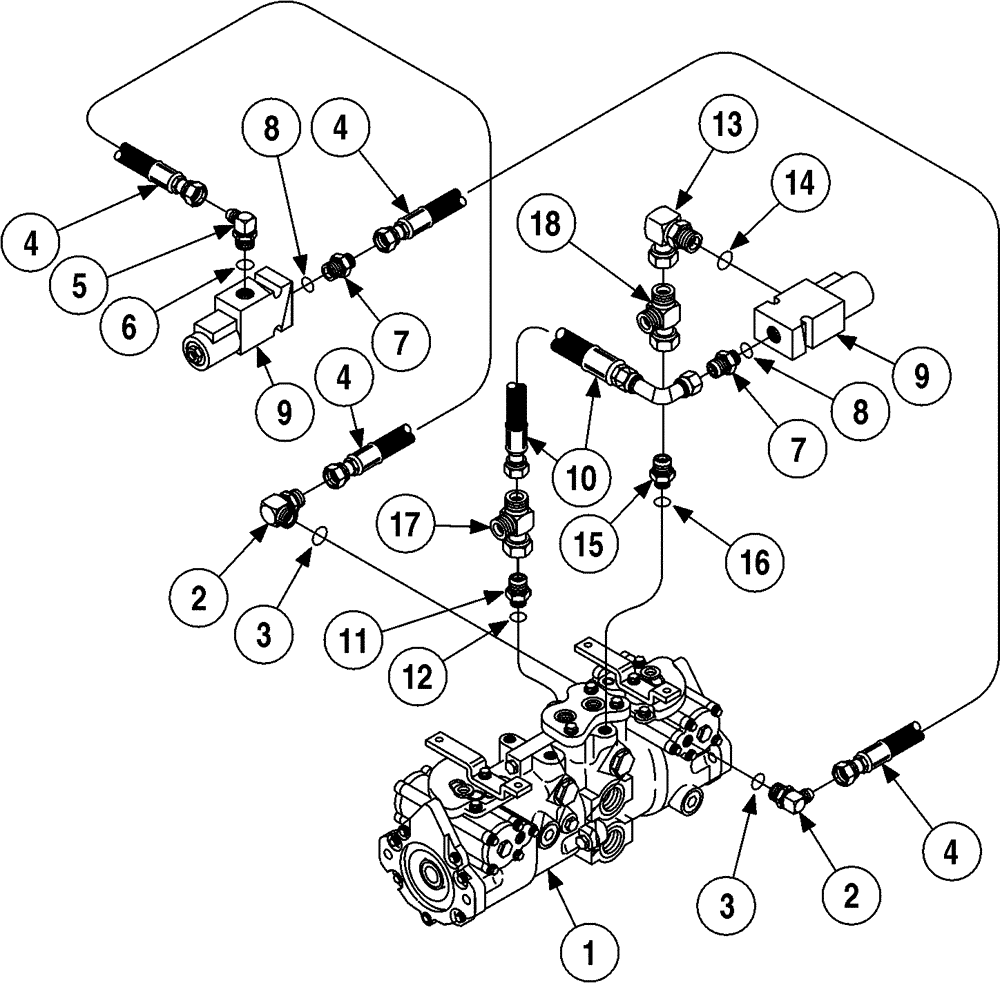

Запчасти Case 6010 (06-03) - HYDROSTATIC SYSTEM - BYPASS VALVES (29) - HYDROSTATIC DRIVE

1

339407A2

PUMP

Tandem Piston, See figure 6-04 - 6-06

1шт.

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

2

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90°, 7/16 fl x 9/16 or, Includes: 3

2шт.

4

365540A1

HOSE

510 mm (20-5/64 in), Tandem Pump M4 and M5 Front Ports to Bypass Valve

2шт.

5

218-5320

ELBOW,90 Degree, 7/16"-20, 37 Degree x 3/4"-16, O-Ring

90°, 7/16 fl x 3/4 or, Includes: 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

7/16 fl x 3/4 or, Includes: 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

336370A1

VALVE

check, Thrust/Pullback Bypass, See figure 6-09

2шт.

10

356018A1

HOSE ASSY.

460 mm (18-1/8 in), Tandem Pump M1 Front Port to Bypass Valve

1шт.

11

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 12

1шт.

13

253510A1

FITTING

90°, 3/4 fem sw x 3/4 or, Includes: 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 or, Includes: 16

1шт.

17

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

7/16 fl x fl x sw, For Attaching Parts, See figure 6-10, REF 14

1шт.

18

218-5484

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run x 7/16"-20

For Attaching Parts, See figure 6-10, REF 15

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
