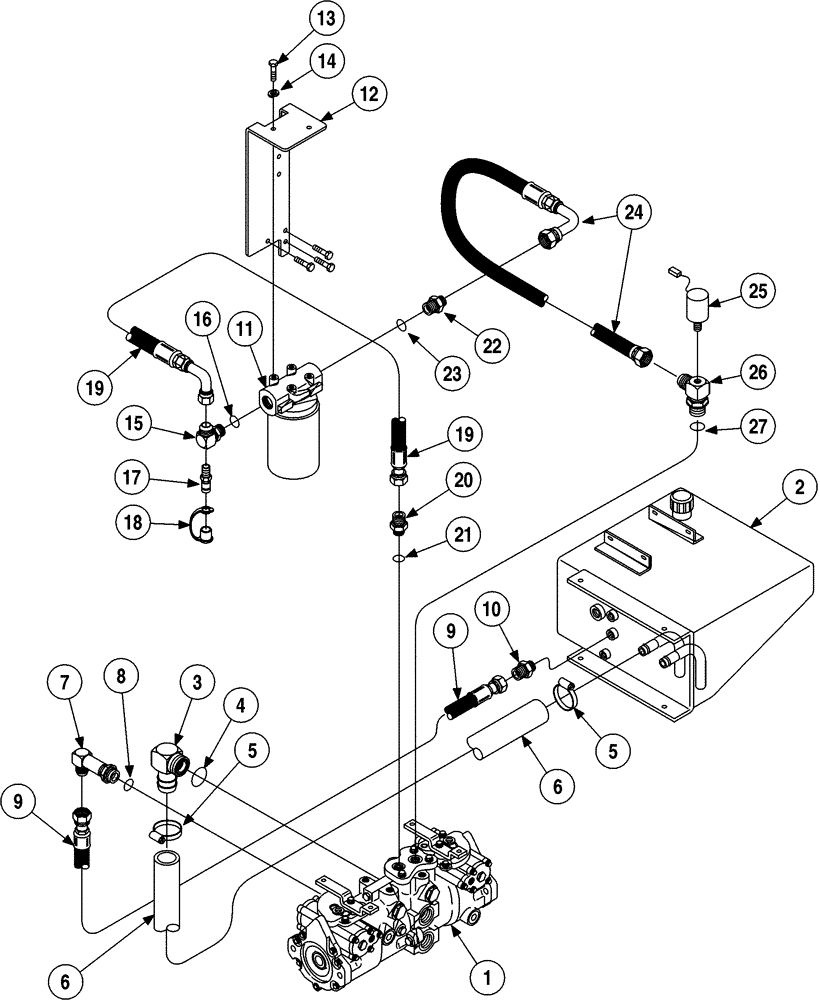

Запчасти Case 6010 (06-01) - HYDROSTATIC SYSTEM - FILTER AND RESERVOIR (29) - HYDROSTATIC DRIVE

1

339407A2

PUMP

Tandem Piston, See figures 6-04 - 6-06

1шт.

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

2

336493A2

TANK

Hydraulic Oil, See figure 8-10

1шт.

3

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 4

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

5

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

6

356011A1

HOSE

Reservoir to Tandem Pump Inlet

1шт.

7

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90°, 1-1/16 fl x or, Includes: 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

356024A1

HOSE ASSY.,19.05 mm ID x 1880.00 mm, SAE 12

Tandem Pump Case Drain L1 Port to Reservoir

1шт.

10

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1-1/16 fl x 3/4 PT

1шт.

11

336739A1

FILTER ASSY

oil, Charge Circuit, Includes: Head, A165029, 186184A1

1шт.

NSS

NOT SOLD SEPARAT

Head, Filter

1шт.

A165029

HYDRAULIC OIL FILTER

1шт.

186184A1

SENSOR

Differential Pressure

1шт.

12

353635A1

BRACKET

Filter Mount

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

357535A1

ELBOW

90°, Special, Includes: 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

H434164

COUPLING

Diagnostic

1шт.

18

H434163

DUST CAP

1шт.

19

356014A1

HOSE ASSY.,12.70 mm ID x 545.00 mm, SAE 8

Remote Filter Outlet of Tandem Pump to Inlet of, Charge Pump Filter

1шт.

20

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

356013A2

HOSE,12.70 mm ID x 445.00 mm, SAE 8

Outlet of Charge Pump Filter to Remote Filter Inlet of, Tandem Pump

1шт.

25

TX401150

SWITCH

Charge Pressure

1шт.

26

357536A2

FITTING

90°, 3/4 fl x 7/8 or, Special, Includes: 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
