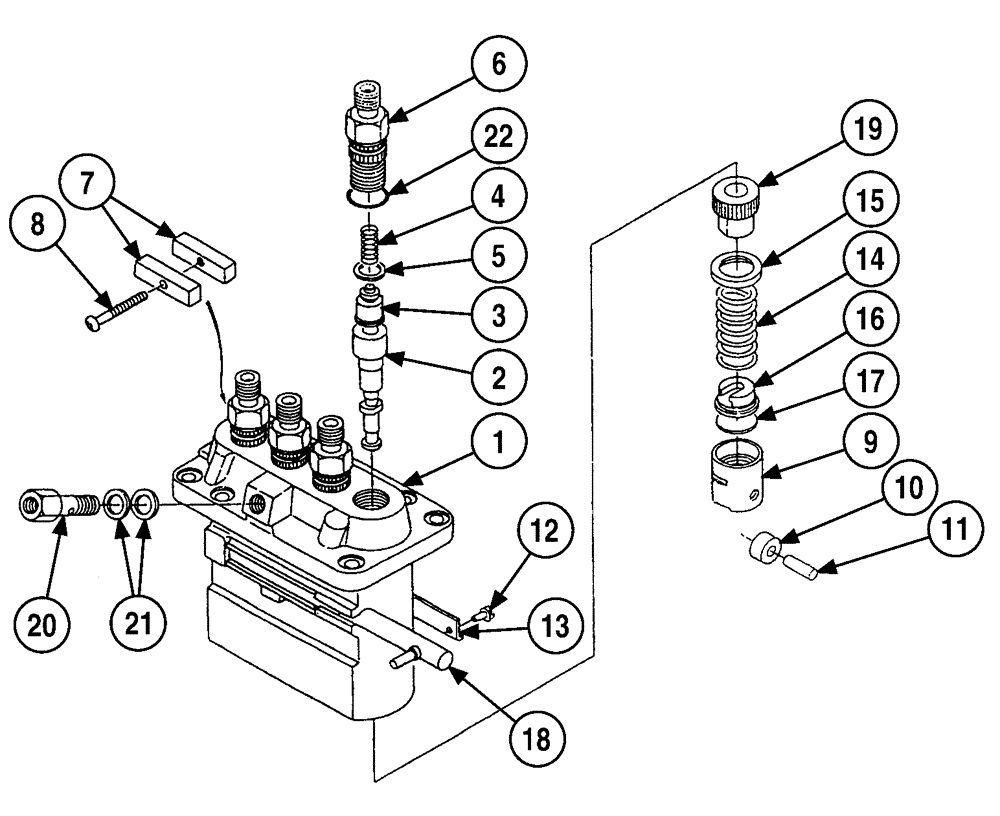

Запчасти Case 6010 (03-08) - PUMP - FUEL INJECTION, KUBOTA V2003TE ENGINE (10) - ENGINE

368584A1

PUMP

Consists of: 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

200131A1

PLUNGER

4шт.

3

202430A1

VALVE

4шт.

4

202431A1

SPRING

4шт.

5

368585A1

GASKET

4шт.

6

202433A1

HOLLOW SCREW

4шт.

7

202434A1

HEATED GLASS

Includes: 8

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

1шт.

9

202435A1

HEATED GLASS

Includes: 10, 11

4шт.

10

NSS

NOT SOLD SEPARAT

Bushing

4шт.

11

NSS

NOT SOLD SEPARAT

Pin

4шт.

12

202436A1

PIN

4шт.

13

202437A1

IDENTITY PLATE

2шт.

14

202438A1

SPRING

compression

4шт.

15

202439A1

SEAT/SLOT

4шт.

16

202440A1

SEAT/SLOT

4шт.

17

202441A1

BLOCK

adjusting

4шт.

18

202442A1

RACK

1шт.

19

202443A1

SLEEVE

4шт.

20

1959551C1

SCREW

1шт.

21

1959552C1

WASHER

seal

2шт.

22

202446A1

O-RING

4шт.
