(03-02) - FUEL TANK AND PUMP - FILTERS, FUEL

Запчасти Case 6010 (03-02) - FUEL TANK AND PUMP - FILTERS, FUEL (10) - ENGINE

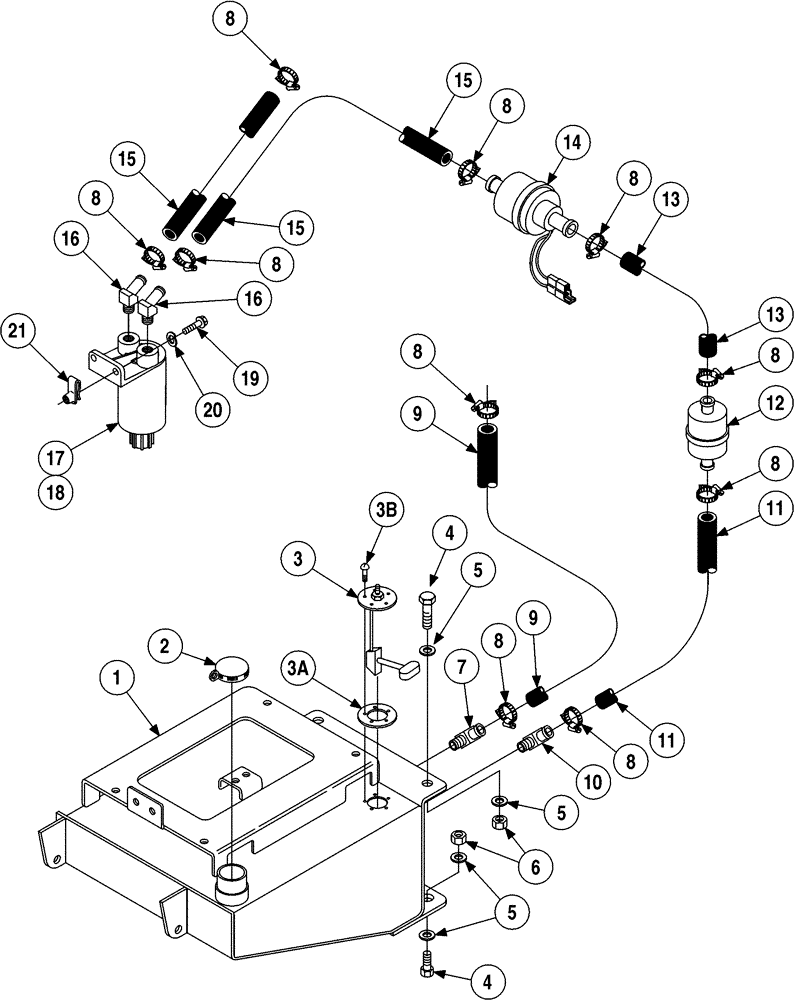

Схема запчастей Case 6010 - (03-02) - FUEL TANK AND PUMP - FILTERS, FUEL (10) - ENGINE
3
1
19
12
8
2
5
13
14
4
21
8
15
8
3a
13
5
11
8
9
9
11
8
10
17
16
8
18
20
6
8
8
8
7
5
15
4
16
8
3b
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

334930A2

TANK

Includes: 2, 3

1шт.

2

H433699

PLUG

1шт.

3

336900A1

SENDER UNIT

SENDER , Fuel

1шт.

3a

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

3b

NSS

NOT SOLD SEPARAT

Screw, Sealing

5шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

6

231-1448

NUT,1/2"-13, GB

4шт.

7

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

1шт.

8

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

10шт.

9

365628A1

HOSE

1/4 ID x 70-5/64 in

1шт.

10

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

90°, 3/8 barb x 1/4 PT

1шт.

11

H433723

LARGE HOSE

HOSE,LARGE 3/8 ID x 8-7/8 in, Cut From H434205

1шт.

12

D139225

FILTER, FUEL

In-Line

1шт.

13

L302971

FUEL HOSE

3/8 ID x 51-13/16 in

1шт.

14

368607A1

FEED PUMP

Fuel

1шт.

15

369945A1

FUEL HOSE,9.50mm ID x 450mm, SAE 30R2 Type 2

2шт.

16

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 stem x 1/4 PT, bead nose

2шт.

17

114545A1

FILTER ASSY

Filter and Water Separator, Mount and Filter, Includes: 18

1шт.

18

J931062

FILTER

fuel

1шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

492-11031

LOCK WASHER,5/16"

2шт.

21

H346650

NUT

2шт.
