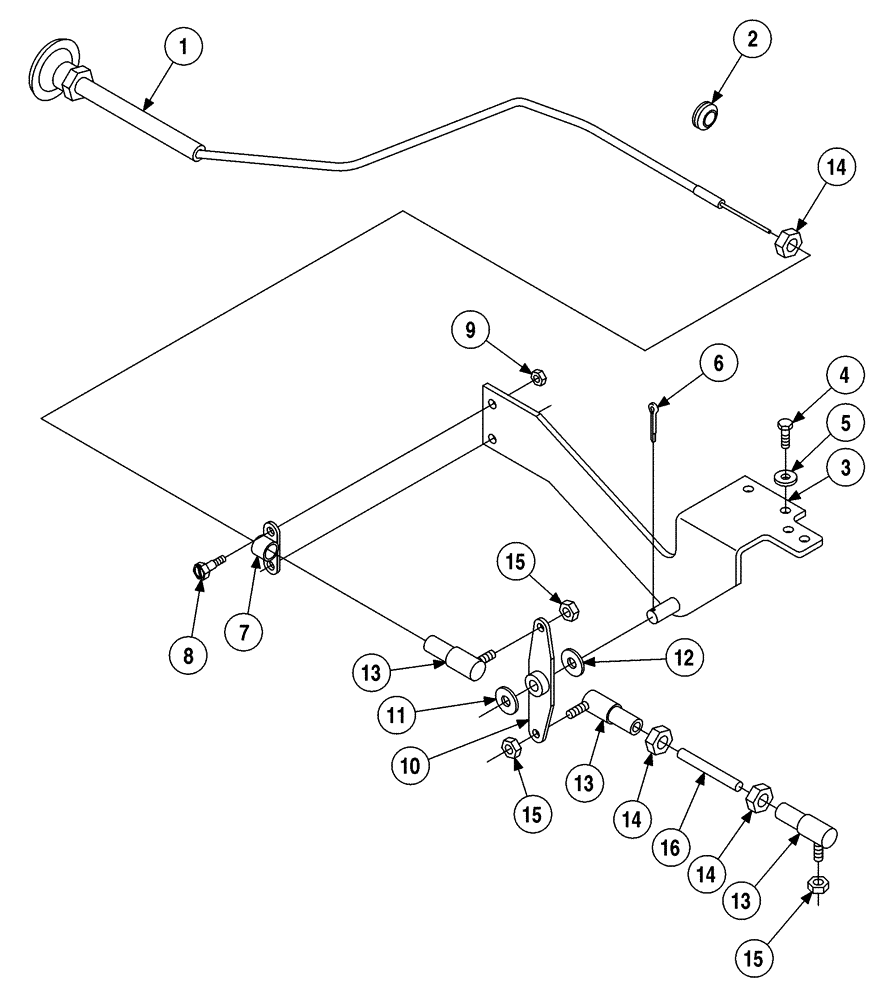

Запчасти Case 6010 (03-01) - CONTROLS - THROTTLE (10) - ENGINE

1

341462A1

CABLE

1шт.

2

248-2177

GROMMET,11/16" ID x 1" Groove Dia

1шт.

3

336710A1

BRACKET

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

6

432-612

COTTER PIN,3/32" x 3/4"

1шт.

7

L12441

CLAMP

1шт.

8

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

2шт.

9

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

2шт.

10

108084A1

LEVER

1шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

12

H196741

WASHER

belleville

1шт.

13

L12437

BALL JOINT,#10 - 32 x 7/8"

3шт.

14

225-14210

NUT,#10-32

3шт.

15

193-1000

NUT,Keps, w/LW,#10-32

NF

3шт.

16

108081A1

ROD

connecting

1шт.
