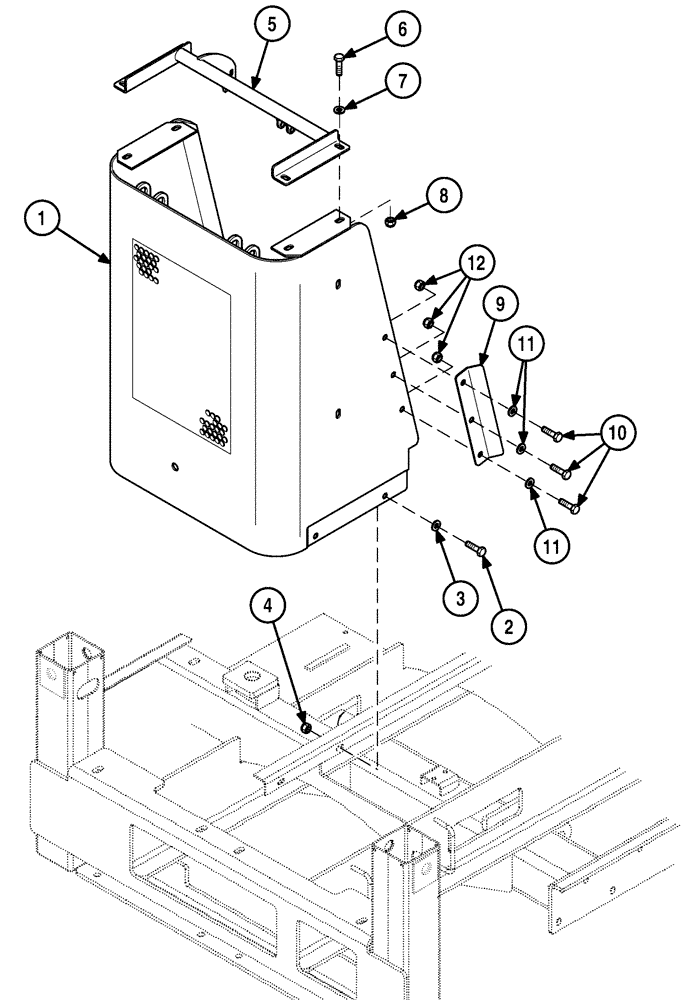

Запчасти Case 6010 (09-21) - GRILLE - RADIATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

369476A2

GRILLE

Replaces: 369476A1

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

4

231-1446

NUT,3/8" - 16, Gr 5

4шт.

5

369462A2

SUPPORT

Grill, Top

1шт.

6

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

8

231-1445

NUT,5/16"-18, GB

4шт.

9

370106A1

GUIDE

Hood

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

12

425-105

NUT,5/16"-18, G5

3шт.
