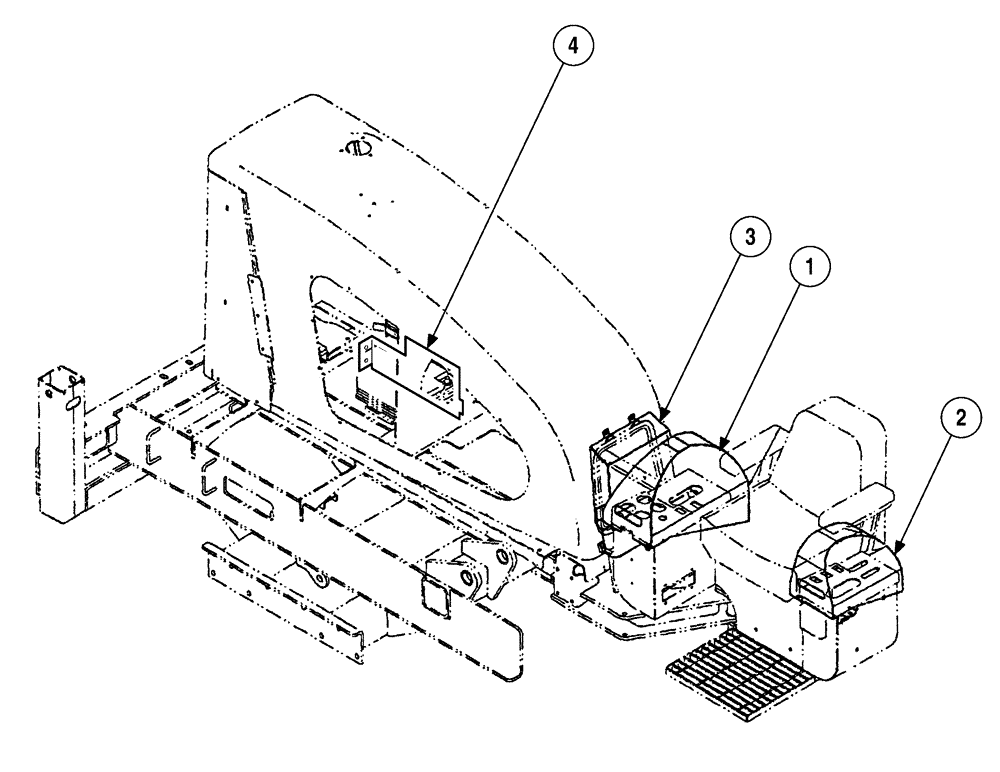

Запчасти Case 6010 (09-19) - COVERS - ANTI-VANDALISM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

388026A1

BRACKET

Right-Hand, If Used

1шт.

396429A1

HINGE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

496-11028

WASHER,9/32" x 5/8" x .065, HDN

9/32 x 5/8 x 1/16, Hardened

2шт.

231-1444

NUT,1/4"-20, GB

2шт.

388052A1

ANGLE

1шт.

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

2шт.

2

388033A1

COVER

Left-Hand, If Used

1шт.

396429A1

HINGE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

496-11028

WASHER,9/32" x 5/8" x .065, HDN

9/32 x 5/8 x 1/16, Hardened

2шт.

231-1444

NUT,1/4"-20, GB

2шт.

388052A1

ANGLE

1шт.

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

2шт.

3

388394A1

COVER

If Used

1шт.

388404A1

HOOK

2шт.

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

4шт.

388052A1

ANGLE

1шт.

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

2шт.

4

390173A1

COVER

Battery, If Used

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

H346650

NUT

Clip

2шт.
