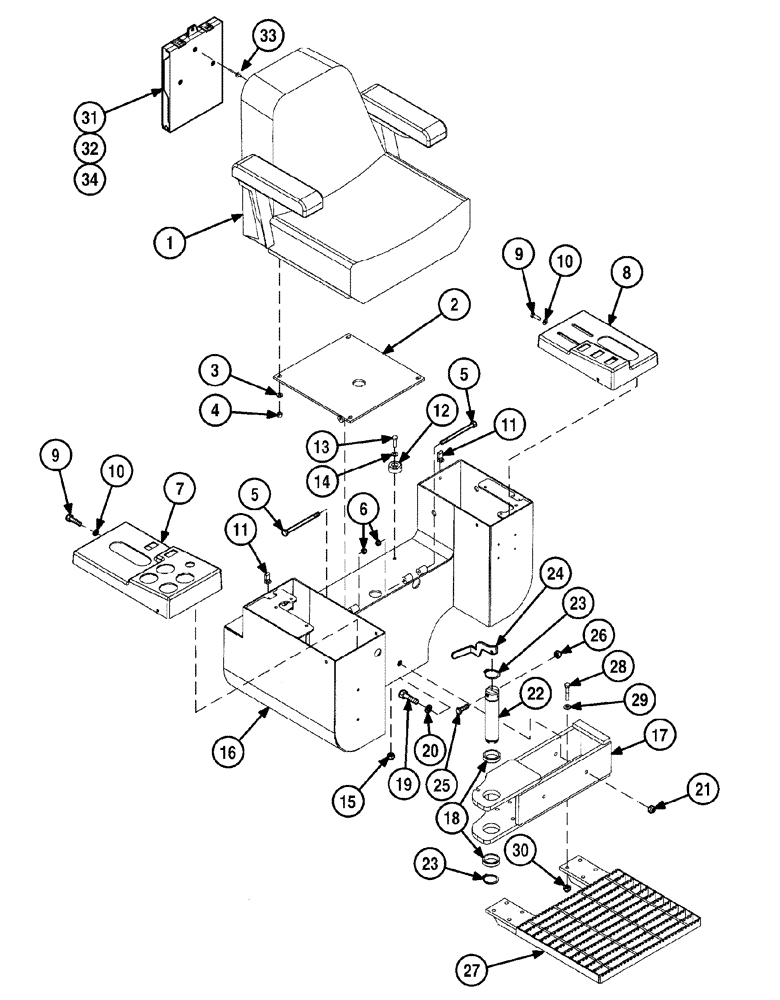

Запчасти Case 6010 (09-18) - SEAT - CONSOLE, COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

300752A1

SEAT

1шт.

320974A1

CUSHION

Includes: Interlock Switch

1шт.

320975A1

CUSHION

1шт.

320976A1

ARM

LH

1шт.

370432A1

ARMREST

RH

1шт.

370433A1

KIT

Set of Arms with Brackets

1шт.

370434A1

SWITCH

Interlock, Order 320974A1

1шт.

370435A1

SET

Tracks

1шт.

2

341550A1

BRACKET

1шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

4

231-1445

NUT,5/16"-18, GB

4шт.

5

413-460

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

1/4 x 3-3/4

2шт.

6

231-1444

NUT,1/4"-20, GB

2шт.

7

341444A1

COVER

Right-Hand

1шт.

8

341445A1

COVER

Left-Hand

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

11

H346650

NUT

6шт.

12

99153414

ANCHOR

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

15

231-1445

NUT,5/16"-18, GB

2шт.

16

339410A1

CONSOLE

1шт.

17

339871A1

FRAME

Includes: 18

1шт.

18

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

2шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

21

231-1446

NUT,3/8" - 16, Gr 5

4шт.

22

341324A2

PIN

1шт.

23

D25279

SNAP RING,M35, Int

2шт.

24

341325A3

HANDLE

1шт.

25

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

26

231-1444

NUT,1/4"-20, GB

1шт.

27

341330A2

FLOOR

1шт.

28

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

30

231-1446

NUT,3/8" - 16, Gr 5

8шт.

31

R46464

CASE

Operator's Manual, Includes: 32

1шт.

32

N7189

BEARING

2шт.

33

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

34

R46467

ROPE

Manual Holder, Includes: R46465, R46463, 151-522, 345-75, No Longer Available, Order Components

1шт.

R46465

CABLE,36mm L

Manual Retention

1шт.

R46463

SCREW,0.18" x 0.75"

Two-piece, Threaded

1шт.

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

1шт.

345-75

SEALANT

No. 271; 1 ml

1шт.

TX405912

CUP

Cup

1шт.

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

4шт.
