Запчасти Case 6010 (09-17) - CHASSIS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

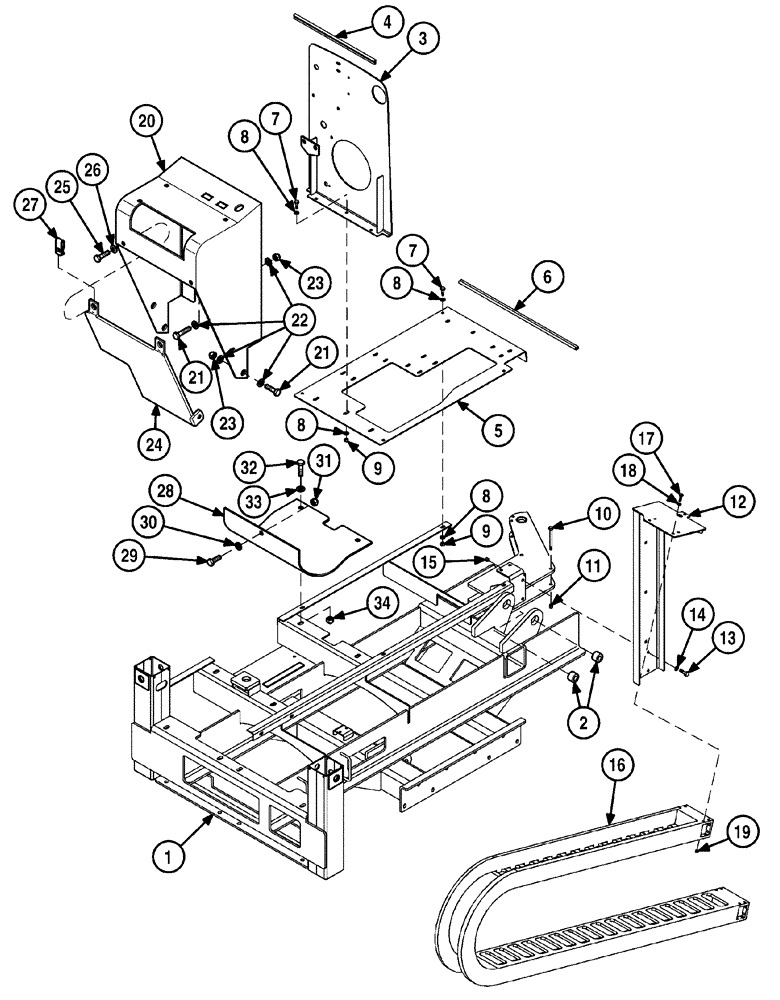

Схема запчастей Case 6010 - (09-17) - CHASSIS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
9
25
21
5
21
17
12
33
2
13
10
3
23
19
8
14
11
9
18
24
8
20
27
34
1
31
16
32
23
22
8
29
26
4
30
8
7
15
28
7

Артикул

Название

Примечание

Количество

1

337272A3

FRAME

Replaces: 337272A2, Includes: 2

1шт.

2

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

3

337284A2

BRACKET

Air Cleaner Assy

1шт.

4

353129A1

MOLDING

508 mm (20 in)

1шт.

5

337434A1

BASE

1шт.

6

353128A1

MOLDING

737 mm (29-1/64 in)

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

9шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

18шт.

9

231-1446

NUT,3/8" - 16, Gr 5

9шт.

10

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

2шт.

12

349013A1

BRACKET

Power Tube

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

15

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16

341220A1

TUBE

Hose

1шт.

391301A1

PLASTIC

Plate, Right Side

35шт.

391302A1

PLASTIC

Plate, Left Side

35шт.

391303A1

PLASTIC

Bar, Cross

70шт.

391304A1

PLASTIC

Bracket, End

2шт.

17

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

18

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

19

231-1445

NUT,5/16"-18, GB

8шт.

20

352745A1

BRACKET

Rear Machine Control Valve

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

23

231-1446

NUT,3/8" - 16, Gr 5

4шт.

24

356590A1

COVER

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

26

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

27

H346650

NUT

3шт.

28

371519A1

BAFFLE

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

30

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

31

231-1446

NUT,3/8" - 16, Gr 5

1шт.

32

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

34

231-1446

NUT,3/8" - 16, Gr 5

2шт.

Выбрано товаров: 38
