(02-05) - FILTER, REMOTE - OIL, KUBOTA V2003TE ENGINE

Запчасти Case 6010 (02-05) - FILTER, REMOTE - OIL, KUBOTA V2003TE ENGINE (10) - ENGINE

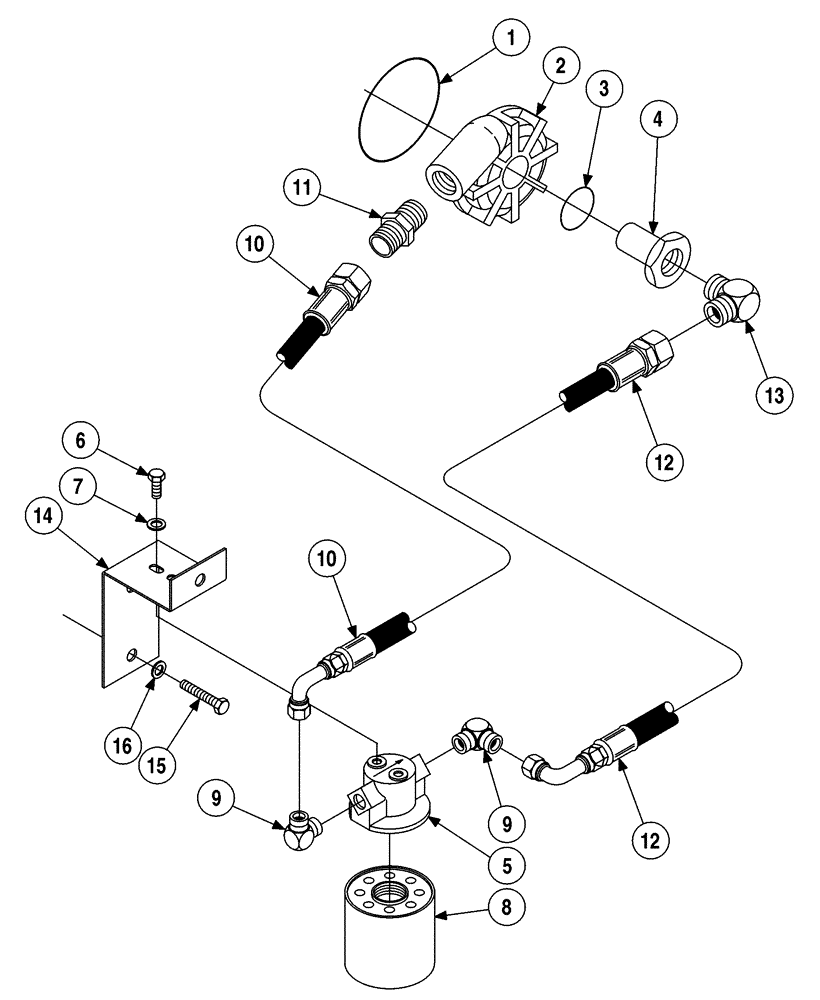

Схема запчастей Case 6010 - (02-05) - FILTER, REMOTE - OIL, KUBOTA V2003TE ENGINE (10) - ENGINE
10
10
12
2
15
16
9
1
12
3
13
11
5
9
4
8
6
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

129815A1

GASKET

Adapter

1шт.

2

129812A1

ADAPTER

1шт.

3

129814A1

O-RING

1шт.

4

129813A1

PLUG

Adapter

1шт.

5

129816A1

HEAD

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

7

H426775

WASHER

Hardened

2шт.

8

126385A1

FILTER, ELEMENT

ELEMENT, FILTER oil

1шт.

9

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90°, 3/4 fl x 1/2 PT

2шт.

10

363628A2

HOSE

295 mm

1шт.

11

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

3/4 fl x 3/8 PT

1шт.

12

363627A2

HOSE

205 mm

1шт.

13

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90°, 3/4 fl x 3/8 PT

1шт.

14

353267A1

BRACKET

Filter

1шт.

15

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.
