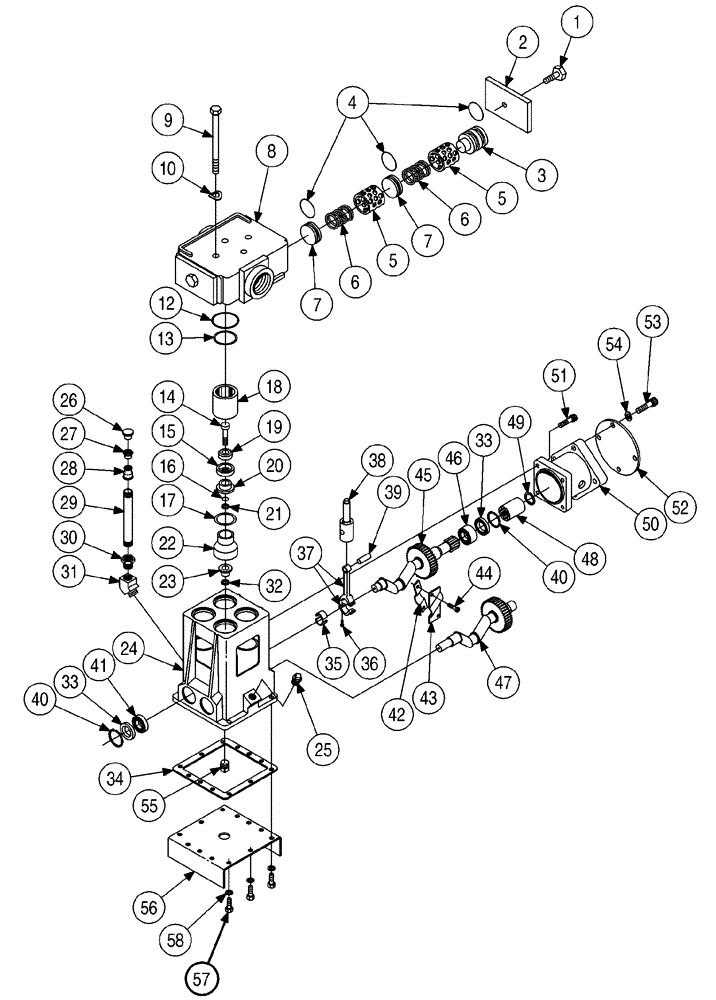

Запчасти Case 6010 (09-25) - PUMP - DRILL FLUID, ONBOARD (89) - TOOLS

352205A1

PUMP

Drill Fluid, Onboard, Consists of: 1 - 59

1шт.

1

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

2

372975A1

CLAMP

2шт.

3

201224C1

COVER

4шт.

373119A1

KIT

Consists of: 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

12шт.

5

NSS

NOT SOLD SEPARAT

Cage

8шт.

6

NSS

NOT SOLD SEPARAT

Spring Assy

8шт.

7

NSS

NOT SOLD SEPARAT

Seat, Valve

8шт.

8

372974A1

CYLINDER

1шт.

9

26-780

BOLT,Hex, 7/16" - 14 x 5", Gr 8

4шт.

10

372976A1

BELLEVILLE WASHER

belleville

4шт.

11

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

Not Illustrated

1шт.

373120A1

KIT

Consists of: 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Ring, Seal

4шт.

14

NSS

NOT SOLD SEPARAT

Screw, Special

4шт.

15

NSS

NOT SOLD SEPARAT

Cup

4шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

17

NSS

NOT SOLD SEPARAT

Seal

4шт.

18

372979A1

BUSHING

4шт.

19

372980A1

WASHER

4шт.

20

202287C1

ARM

4шт.

21

372978A1

CAP WASHER

4шт.

22

372977A1

CAP

4шт.

372973A1

END ASSY.

Consists of: 23 - 59

1шт.

23

372999A1

HOLDER

4шт.

24

372982A1

FRAME

1шт.

25

NSS

NOT SOLD SEPARAT

Plug

1шт.

26

217-458

1шт.

27

373006A1

VENT

1шт.

28

221-1344

COUPLING

1/4 x 1/8

1шт.

29

221-1142

PIPE,Nipple, 1/4" NPT x 4 1/2"

1шт.

30

221-1091

BUSHING,Hex, 3/4" x 1/4" NPT

3/4 x 1/4

1шт.

31

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

3/4 PT x fem PT

1шт.

373121A1

KIT

Consists of: 32 - 36

1шт.

32

NSS

NOT SOLD SEPARAT

Seal

4шт.

33

NSS

NOT SOLD SEPARAT

Seal, Oil

4шт.

34

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

35

NSS

NOT SOLD SEPARAT

Bearing, Con. Rod, Set of 2

4шт.

36

NSS

NOT SOLD SEPARAT

Screw

8шт.

37

372986A1

ROD

4шт.

38

372993A1

HEAD

4шт.

39

372992A1

PIN

4шт.

40

372991A1

RING

4шт.

41

372984A1

BALL BEARING

3шт.

42

372988A1

STRIP

2шт.

43

372987A1

SLINGER

2шт.

44

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

No. 10 x 3/4

4шт.

45

373000A1

CRANKSHAFT

Drive

1шт.

46

372985A1

BALL BEARING

1шт.

47

373001A1

CRANKSHAFT

Driven

1шт.

48

372994A1

COUPLING

1шт.

49

372996A1

RING

1шт.

50

372998A1

FLANGE

1шт.

51

61-35016

HEX SOC SCREW,1/2"-13 x 1"

4шт.

52

373007A1

COVER

1шт.

53

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

54

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

55

217-505

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1/4 PT

1шт.

56

372983A1

BASE

1шт.

57

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

12шт.

58

492-11038

LOCK WASHER,3/8"

12шт.

59

225-14110

NUT,#10-24

Not Illustrated

4шт.
