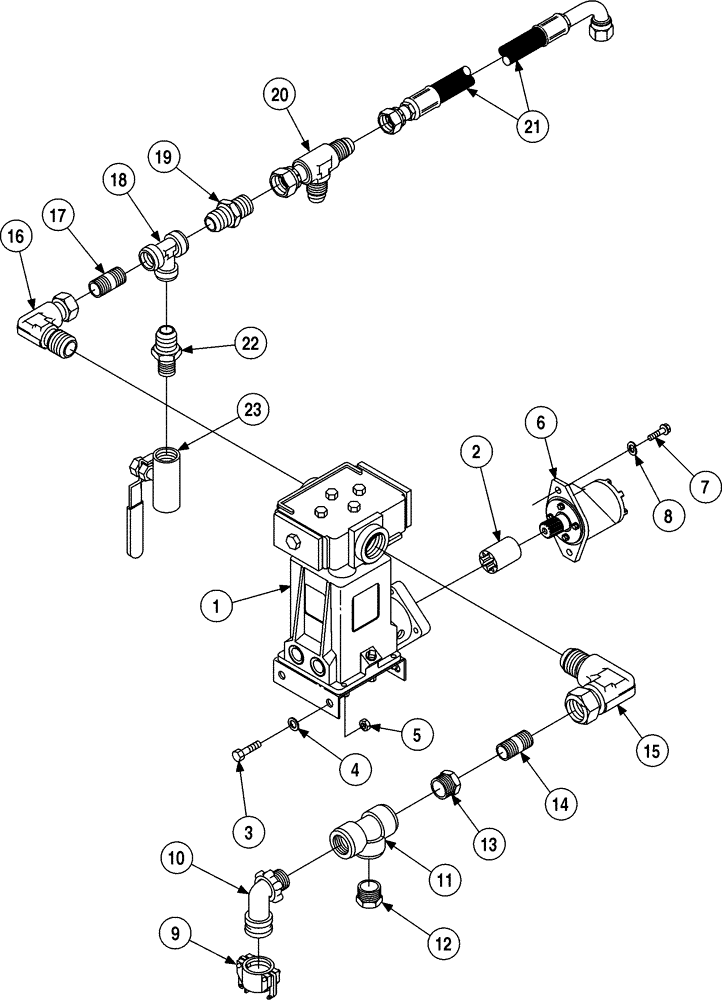

Запчасти Case 6010 (09-23) - FLUID SYSTEM - DRILL (89) - TOOLS

1

352205A1

PUMP

Drill Fluid, Includes: 2, See figure 9-25

1шт.

2

372994A1

COUPLING

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

5

231-1446

NUT,3/8" - 16, Gr 5

4шт.

6

338978A1

MOTOR

Drill Fluid, High Flow, 20 gpm, Low Pressure, Vendor Part No. 146-1104-002, If Used, See figure 8-35

1шт.

6

338979A1

MOTOR

Drill Fluid, Low Flow, 13 gpm, High Pressure, Vendor Part No. 146-1105-002, If Used, See figure 8-36

1шт.

7

461-35020

HEX SOC SCREW,1/2"-13 x 1 1/4"

1/2 x 1-1/4

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

98220018

CAP

2 in

1шт.

10

98029012

ADAPTER,2" Male Thread

90°, Adapter

1шт.

11

52110011

TEE

2 in fem PT

1шт.

12

98020032

PLUG

2 in

1шт.

13

98020125

FITTING

2 PT x 1-1/4 in PT

1шт.

14

221-1263

NIPPLE, LUBE,Nipple, 1 1/4" NPT x 2 1/2"

NIPPLE 1-1/4 PT x 2-1/2

1шт.

15

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

90°, 1-1/4 NPT, Street

1шт.

16

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street

1шт.

17

221-1211

FITTING

3/4 PT x 1-3/8

1шт.

18

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

3/4 fem PT

1шт.

19

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

3/4 fl x PT

2шт.

20

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

For Attaching Parts, See figure 9-24, REF 7

1шт.

21

358390A1

HOSE

6985 mm (275 in), For Attaching Parts, See figure 9-07, REF 4

1шт.

22

217-1093

HYD CONNECTOR,3/4"-14 NPTF x 1/2"-14 NPTF

3/4 x 1/2 PT

1шт.

23

01400111

BALANCE VALVE

1/2 fem PT, shut-off

1шт.

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

Insulated, Not Illustrated

1шт.
