Запчасти Case 6010 (09-22) - GROUNDING COMPONENTS (89) - TOOLS

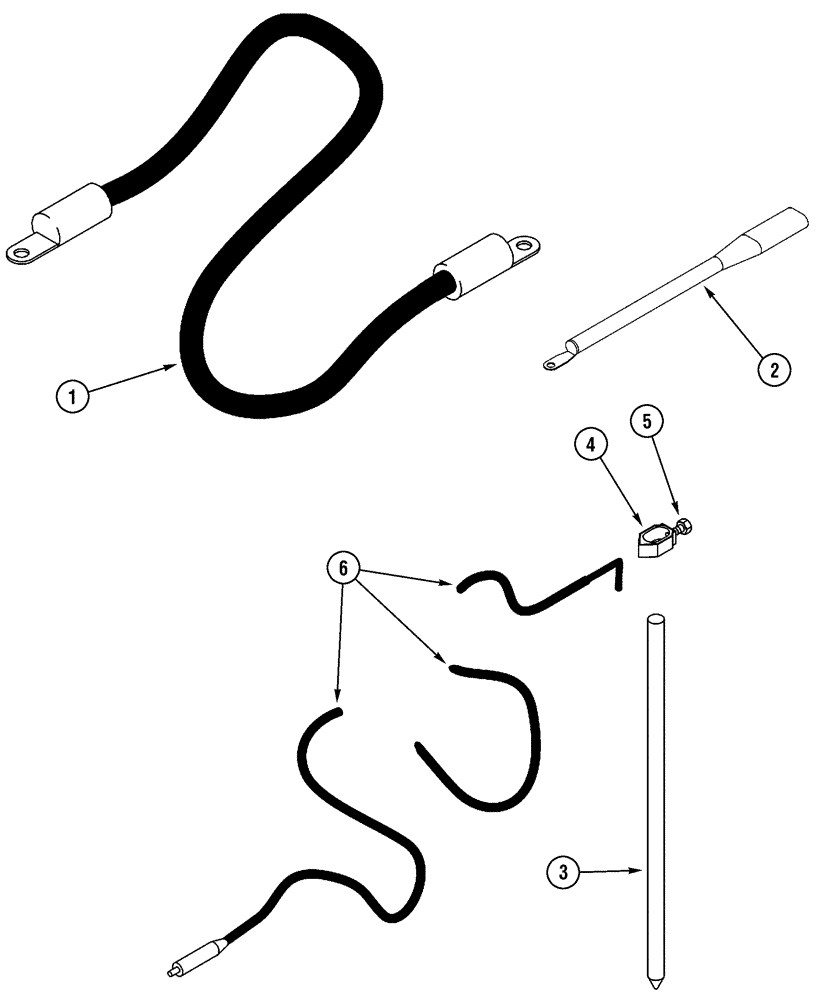

Схема запчастей Case 6010 - (09-22) - GROUNDING COMPONENTS (89) - TOOLS
3
4
6
1
5
2

Артикул

Название

Примечание

Количество

1

359202A1

CABLE

6350 mm (250 in), Drill Drive Ground

1шт.

2

10060743

CABLE

305 mm (12 in)

1шт.

10010143

ROD

Includes: 3 - 6

1шт.

3

359196A1

SUPPORT

1219 mm (48 in)

1шт.

4

359309A1

CLAMP

18 mm ID, Includes: 5

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt, Brass

1шт.

6

359195A1

CABLE

3658 mm (144-1/64 in)

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

231-1448

NUT,1/2"-13, GB

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2, External Tooth

1шт.

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

NSS

NOT SOLD SEPARAT

Gloves, Purchase Locally

1шт.

NSS

NOT SOLD SEPARAT

Boots, Size 12, Purchase Locally

2шт.

All boots and gloves must meet the specification : ANSI Z41 EH (Electrical Hazard).

1шт.

Выбрано товаров: 15
