(09-16) - CONTROLS - HANDLES, ROTATE AND THRUST/PULLBACK

Запчасти Case 6010 (09-16) - CONTROLS - HANDLES, ROTATE AND THRUST/PULLBACK (89) - TOOLS

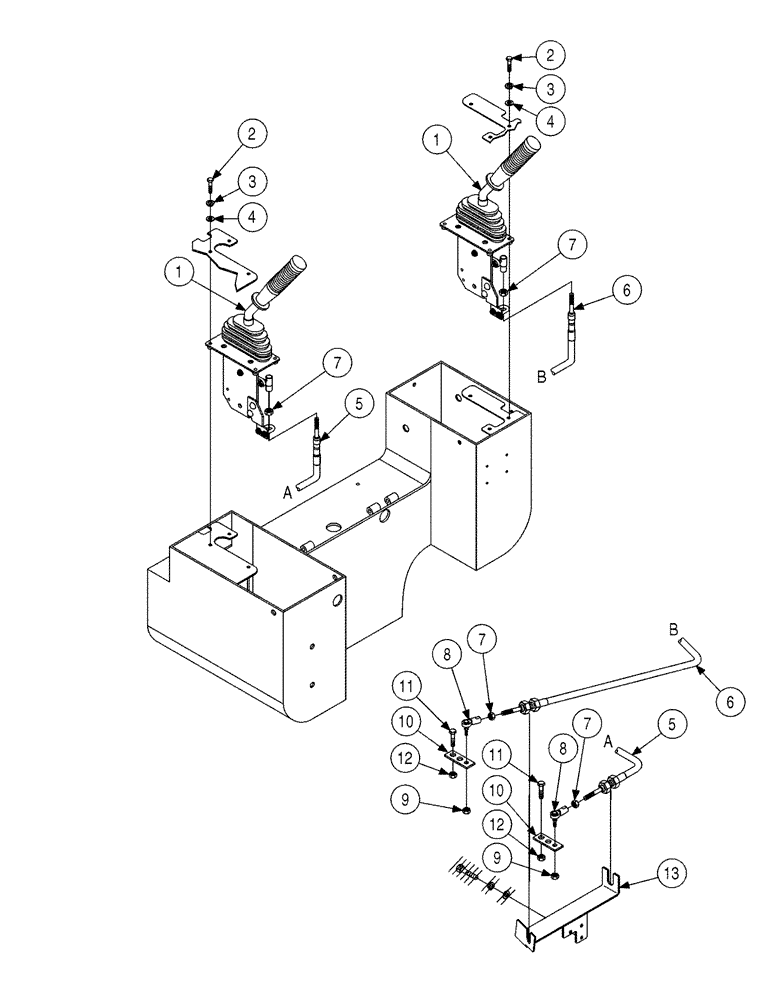

Схема запчастей Case 6010 - (09-16) - CONTROLS - HANDLES, ROTATE AND THRUST/PULLBACK (89) - TOOLS
2
3
3
6
11
4
7
1
6
13
10
7
11
7
12
5
10
5
1
8
9
2
9
4
12
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

347949A1

HANDLE

Rotate, and Thrust/Pullback, Includes Handle, Boot, and Ball Joint, Components Not Serviced Separately

2шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

3

492-11025

LOCK WASHER,1/4"

6шт.

4

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64, Hardened

6шт.

5

341460A1

CABLE

Rotate Control

1шт.

6

341461A1

CABLE

Thrust/Pullback Control

1шт.

7

425-154

JAM NUT,Jam, 1/4"-28, G5

4шт.

8

H358374

PIVOT,1/4" - 28 x 1-1/3"

1/4 NF

2шт.

9

230-4714

LOCK NUT,1/4"-28, GA

1/4 NF

2шт.

10

348484A1

PLATE

Stop

2шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

12

231-1446

NUT,3/8" - 16, Gr 5

4шт.

13

353632A1

BRACKET

Control Cable

1шт.
