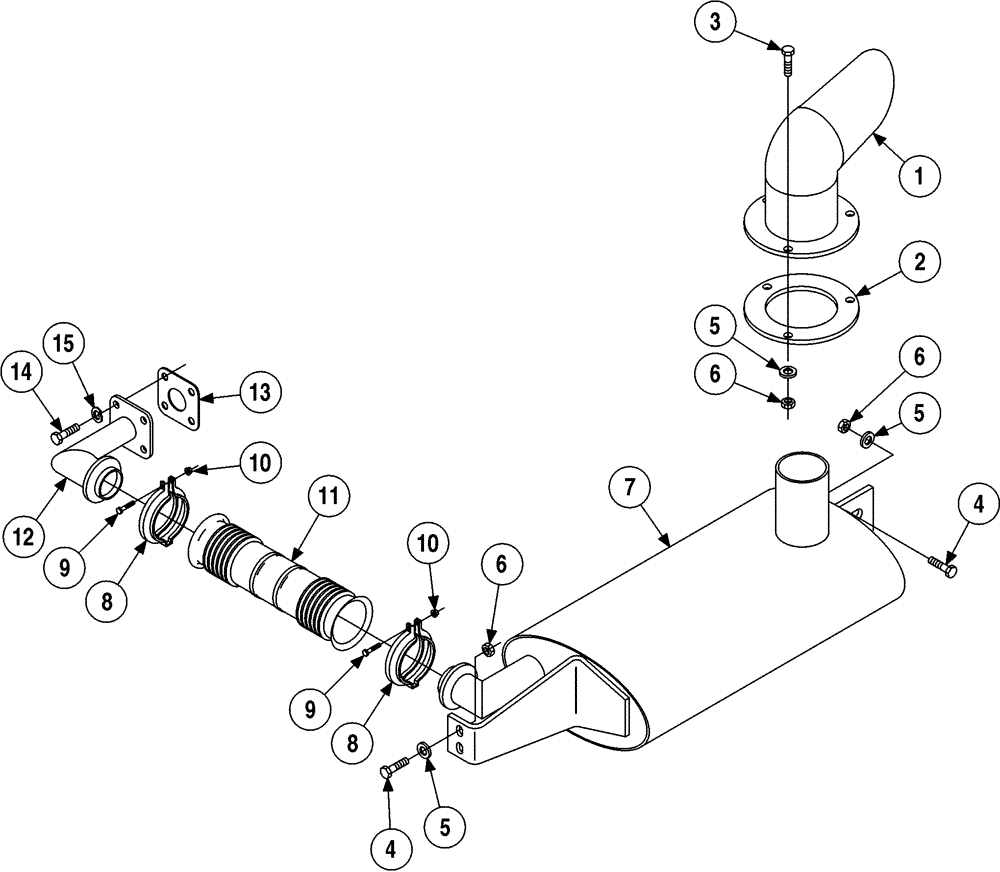

Запчасти Case 6010 (02-04) - MUFFLER - EXHAUST SYSTEM (10) - ENGINE

1

304811A1

EXTENSION,88.9 mm ID, 139.7 mm OD, 287.2 mm Length

Exhaust Extension

1шт.

1

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Replaces 304811A1

1шт.

2

247026A1

LARGE PLATE

PLATE, LARGE

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

7шт.

6

231-1446

NUT,3/8" - 16, Gr 5

7шт.

7

371837A1

MUFFLER

1шт.

8

135543A1

CLAMP,71.12mm - 71.63mm

2шт.

9

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

10

232-4115

LOCK NUT,5/16"-18, GC

2шт.

11

138648A1

BELLOWS

Bellows

1шт.

12

371974A1

ADAPTER

1шт.

13

126500A2

GASKET

Supplied With Engine Assy

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

892-11008

LOCK WASHER,8mm ID

4шт.
