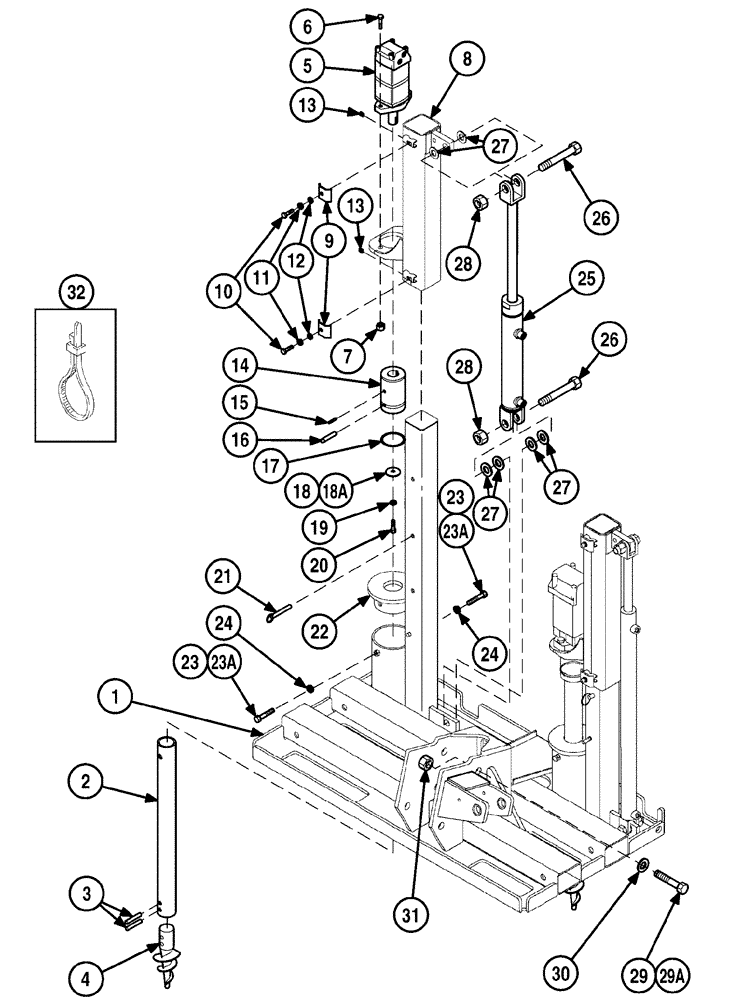

Запчасти Case 6010 (09-10) - STAKEDOWN, POWER (89) - TOOLS

1

336665A2

FRAME

1шт.

314413A1

AUGER

Consists of: 2 - 4

2шт.

2

315783A1

TUBE,54 mm OD, 736.6 mm Length

1шт.

3

38-32432

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

2шт.

4

325291A1

AUGER

1шт.

5

10412211

MOTOR, HYDRAULIC

Stakedown, See figure 8-37

2шт.

6

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

7

231-1448

NUT,1/2"-13, GB

4шт.

8

317956A2

BLOCK

2шт.

9

R17319

CLAMP

4шт.

10

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

11

492-11031

LOCK WASHER,5/16"

4шт.

12

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

13

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

4шт.

14

315778A1

PIN

2шт.

15

83-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

1/2 x 1/2, set

2шт.

16

316390A1

PIN

2шт.

17

238-5335

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

2шт.

18

495-81145

WASHER,13/32" x 1 3/4" x .120"

No Longer Used, Order 18A

2шт.

18a

495-81143

WASHER,13/32" x 1 1/2" x .120"

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

320608A1

PIN

2шт.

22

316607A1

GUIDE

Guide

2шт.

23

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

No Longer Used, Order 23A

4шт.

23a

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

24

492-11044

LOCK WASHER,7/16"

4шт.

25

337489A1

CYLINDER

Stakedown, See figure 8-32

2шт.

26

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 x 3

4шт.

27

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

12шт.

28

231-14412

LOCK NUT,3/4"-10, GB

4шт.

29

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

No Longer Used, Order 29A

6шт.

29a

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

6шт.

30

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

6шт.

31

231-14412

LOCK NUT,3/4"-10, GB

6шт.

32

A169433

CABLE TIE,304.8mm L

12 in, Tie, Nylon

6шт.
