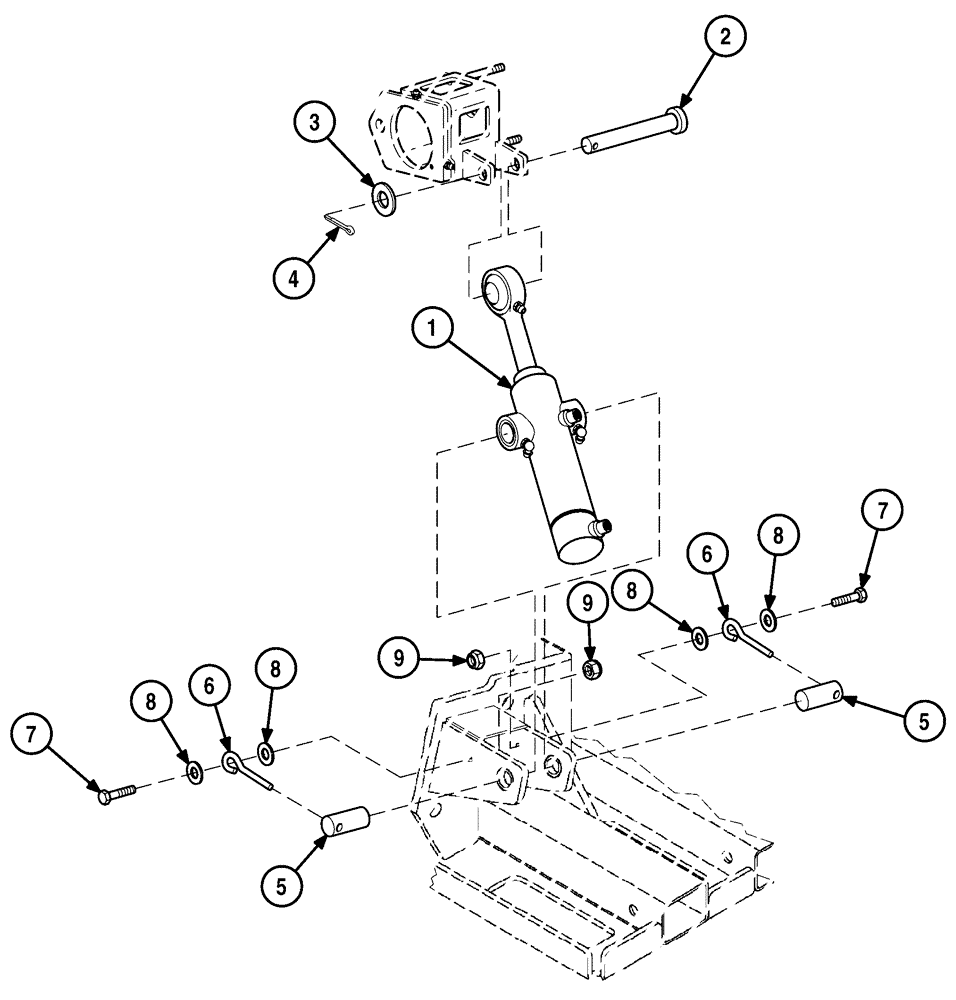

Запчасти Case 6010 (09-09) - MOUNTING - CYLINDER, WRENCH ROTATE (89) - TOOLS

1

369898A2

CYLINDER

Wrench Rotate, See figure 8-34

1шт.

2

439-51690

HEADED PIN,1" x 5 5/8"

1 x 5-5/8

1шт.

3

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

4

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

5

334443A1

PIN

2шт.

6

H313981

PIN

Retainer

2шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

9

231-1445

NUT,5/16"-18, GB

2шт.
