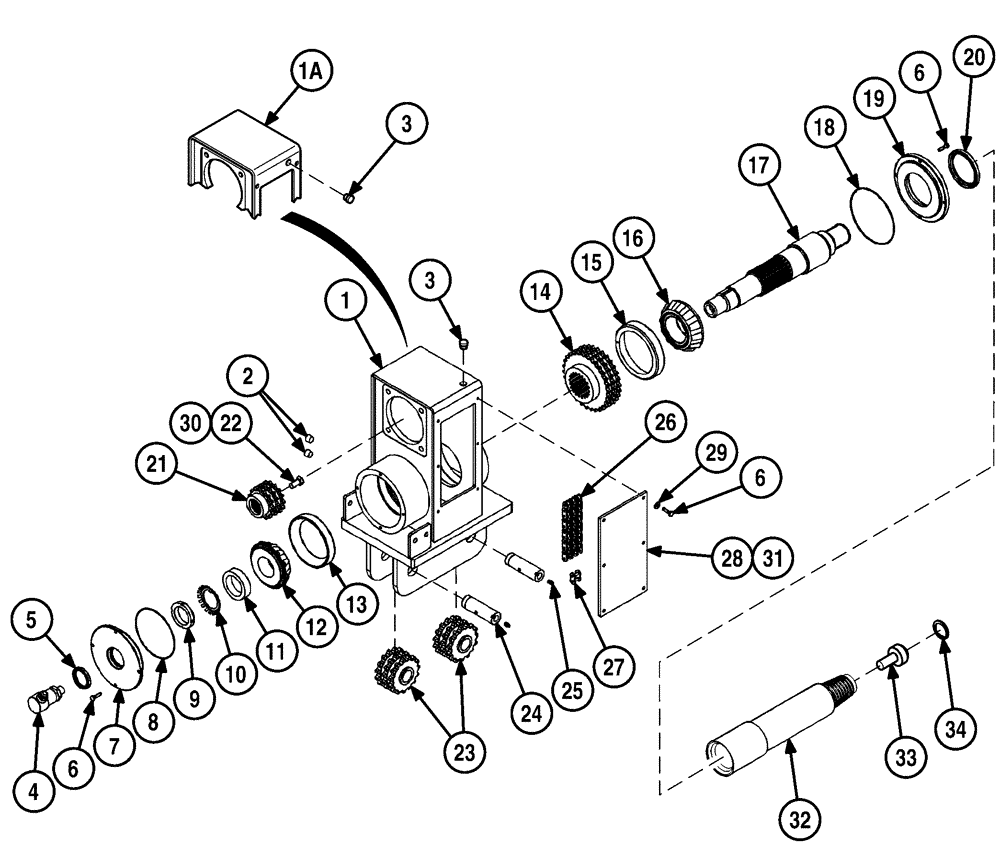

Запчасти Case 6010 (09-07) - DRIVE - DRILL (89) - TOOLS

328959A1

DRIVE

Drill, Not Serviced As An Assembly, Order Components, Consists of: 1 - 31

1шт.

1

329212A1

HOUSING ASSY.

Relief Hole on Top, No Longer Available, Order: 1A

1шт.

1a

329212A2

HOUSING ASSY.

Relief Hole on Side

1шт.

2

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8 PT

2шт.

3

R11152

FITTING

1/8 NPT

1шт.

4

315079A2

PIVOT

Drill Fluid, Replaces: 315079A1, Components Not Serviced Separately, For Attaching Parts, See Page(s) 9-77, 9-79, REF 21

1шт.

5

328804A1

SEAL

1шт.

6

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

14шт.

7

328144A1

CYLINDER END CAP

1шт.

8

238-5160

O-RING,0.103" Thk x 5.25" ID, -160, Cl 5, 75 Duro

1шт.

9

54-2010

BEARING LOCK NUT,Bearing, 1.9685" Bore

1шт.

10

55-2010

LOCK WASHER,Type TW-110

1шт.

11

328146A1

TUBE

1шт.

12

944033C91

BEARING ASSY,53.98mm ID x 33.24mm W

1шт.

13

A52224

BEARING ASSY,2.375" ID x 5.375" OD x 1.4375"

1шт.

14

328141A1

SPROCKET ASSY.

1шт.

15

228591A1

BEARING CUP,146.06mm OD x 25.3mm W

1шт.

16

329974A1

ROLLER BEARING,69.85 mm ID x 39.688 mm

1шт.

17

328139A2

SHAFT

1шт.

18

238-5162

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

19

328142A1

CYLINDER END CAP

1шт.

20

328803A1

SEAL

1шт.

21

330037A1

SPROCKET ASSY.

No. 50, 15T, To Drill Rotation Motor

1шт.

22

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

23

330038A1

SPROCKET ASSY.

Consists Of: 330320A1, 330321A1

2шт.

330320A1

SPROCKET ASSY.

No. 60, 15T

1шт.

330321A1

BUSHING

1-1/4 ID, Flange

2шт.

24

330329A1

SHAFT

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

26

328800A2

CHAIN (AG)

Triple RS50

1шт.

27

328801A1

LINK

Connecting, Triple

1шт.

28

328268A1

PLATE

1шт.

29

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64, Hardened

6шт.

30

345-53

LOCTITE

Loctite 242, Blue, 2 milliliter, Not Illustrated

1шт.

31

345-103

LOCTITE

Permatex 6M Silicone, 1 Ounce, Not Illustrated

2шт.

391839A1

ADAPTER

Spindle, Drill Pipe, Consists of: 32 - 34

1шт.

32

330882A2

ADAPTER

1шт.

33

387987A1

VALVE, PRESSURE RELI

EF 60 psi, Includes: 34

1шт.

34

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.
