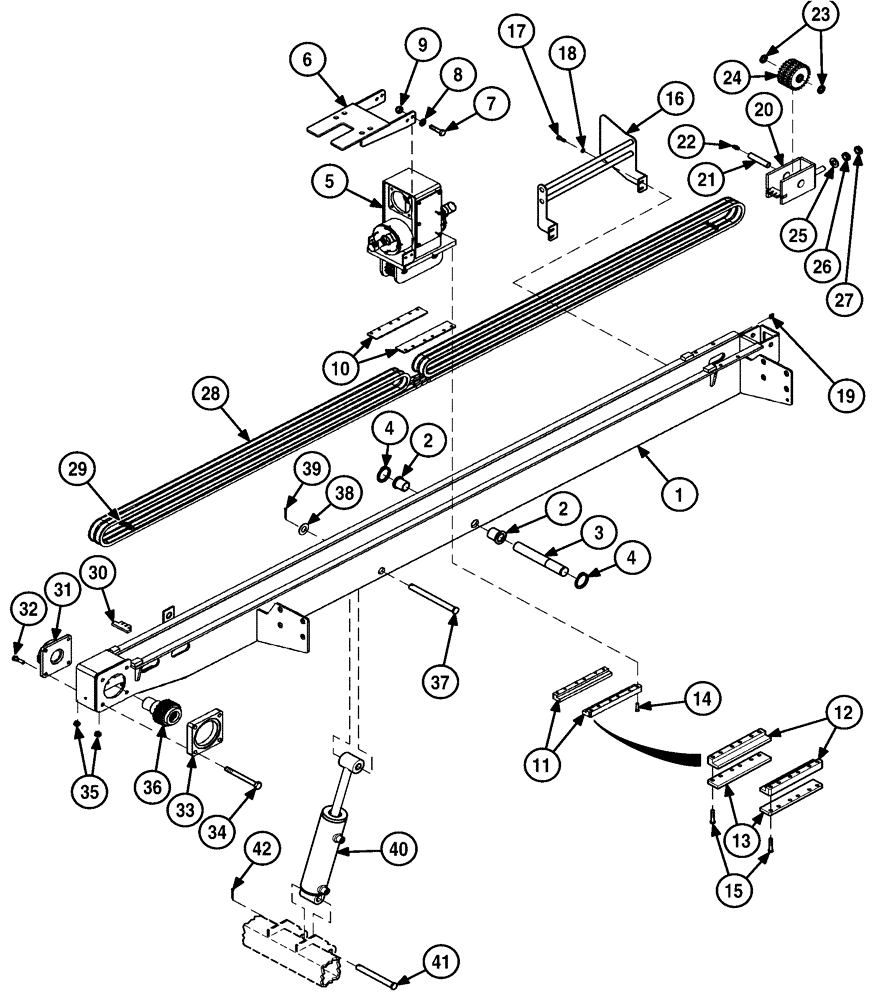

Запчасти Case 6010 (09-05) - BOOM (89) - TOOLS

1

328952A3

BOOM

Replaces: 328952A2, Includes: 2

1шт.

2

336153A1

FLANGED BEARING

45 mm ID, bearing, thrust

2шт.

3

333362A2

PIN

44,4 dia x 311 mm, Replaces: 333362A1

1шт.

4

100-11175

SNAP RING,#175, Ext

2шт.

5

328959A1

DRIVE

Drill, Not Serviced As An Assembly, See figure 9-07

1шт.

6

348495A1

BRACKET

Power Tube

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

328967A1

WEAR PLATE

2шт.

11

328968A1

WEAR PLATE

Wear, No Longer Used, Order: 12, 13, 15

2шт.

12

380605A1

WEAR PLATE

Wear, Ref 12 and 13 Replaces: 11

2шт.

13

380604A1

WEAR PLATE

Ref 12 and 13 Replaces: 11

2шт.

14

461-33824

HEX SOC SCREW,3/8" - 16 x 1-1/2"

3/8 x 1-1/2, Used With: 11, No Longer Used, Order: 15

12шт.

15

61-43832

HEX SOC SCREW,Flat Hd, 3/8"-16 x 2"

3/8 x 2, Used With: 12, 13, Replaces: 14

12шт.

16

362345A1

GUARD

Guard

1шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18

492-11031

LOCK WASHER,5/16"

4шт.

19

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

4шт.

332481A1

SPROCKET ASSY.

Front, Boom, Consists of: 20 - 24

1шт.

20

332480A1

HOUSING

1шт.

21

330329A1

SHAFT

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

23

D43536

WASHER

Hardened, Special

2шт.

24

NSS

NOT SOLD SEPARAT

Sprocket, Consists of: 332402A1, 330321A1

1шт.

332402A1

SPROCKET ASSY.

20T

1шт.

330321A1

BUSHING

1-1/4 ID, Flange

2шт.

25

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

26

425-1016

NUT,1"-8, G5

1шт.

27

425-1416

JAM NUT,Jam, 1"-8, G5

1 , Jam

1шт.

28

341004A2

CHAIN (AG)

Triple, No. 60

1шт.

29

05603112

LINK

connecting

2шт.

30

333070A1

PLATE

Chain

1шт.

31

333639A1

FLANGE

64 mm ID, Flange

1шт.

32

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

33

332794A1

PLATE

Offset

1шт.

34

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4, Secures Plate and Motor

4шт.

35

231-14410

NUT,5/8"-11, GB

8шт.

36

336252A1

SPROCKET ASSY.

Rear, Boom, Components Not Serviced Separately

1шт.

37

439-51690

HEADED PIN,1" x 5 5/8"

1 x 5-5/8

1шт.

38

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

39

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

40

H674312

CYLINDER

Boom Tilt, See figure 8-29

1шт.

41

H56606

AXLE PIN,30.16mm OD x 142.08mm L

1 x 5-1/4

1шт.

42

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.
