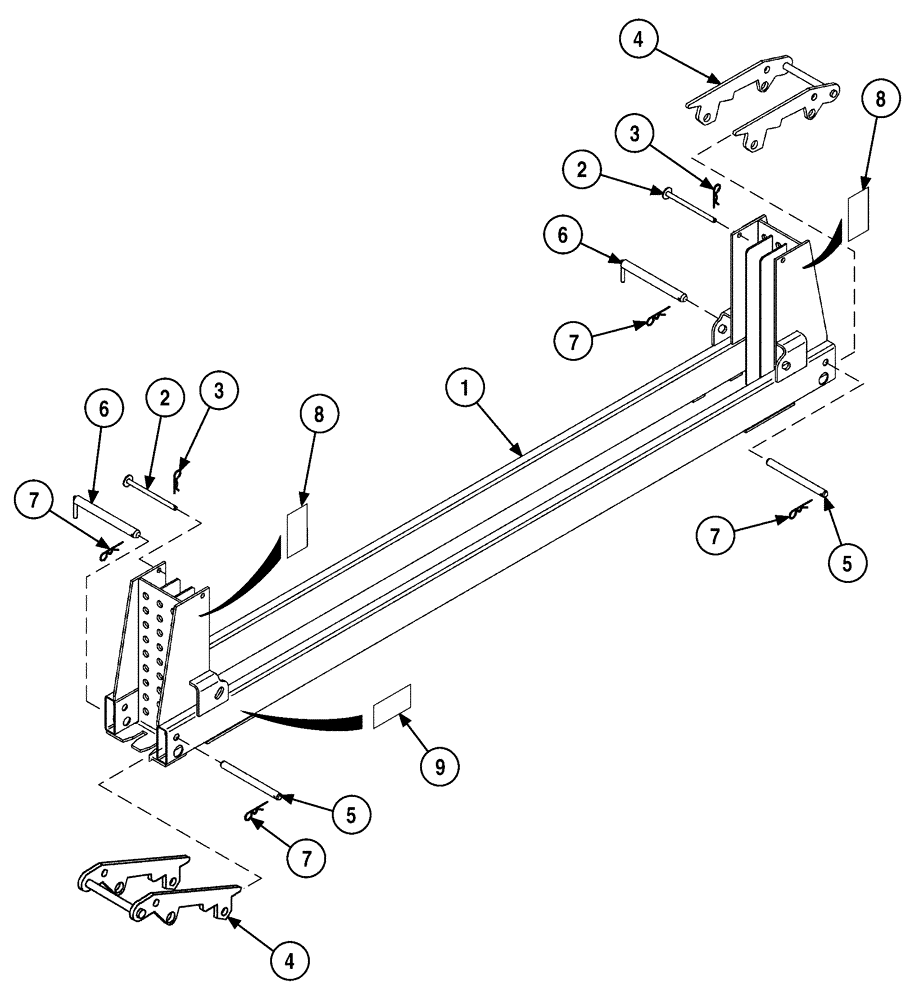

Запчасти Case 6010 (09-04) - PIPE LOADER - CARRIER ASSY (89) - TOOLS

347836A1

Drill Pipe, Machinery Item, Order From Machinery Price List, Consists of: 1 - 9

1шт.

1

347820A2

FRAME

Pipe Carrier, Replaces: 347820A1, Machinery Item, Order From Machinery Price List

1шт.

2

347850A1

PIN

Drill Pipe Locking

2шт.

3

136-164

COTTER PIN,Int, 5/16" x .120"

5/16 x 2-3/4, Hairpin

2шт.

4

347825A1

ARM

Locking

2шт.

5

346547A1

SHAFT

2шт.

6

347828A1

PIN

Retainer

2шт.

7

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair, 3-13/16" lg

4шт.

8

283606A1

DECAL

Hazardous Area, See figure 9-30

4шт.

9

291680A1

DECAL

Electrocution Hazard, See figure 9-32

2шт.
